Descrição do Produto: Braços de Controle Superior Dianteiro para Jeep Grand Cherokee (WK2)/Dodge Durango 2011-2015

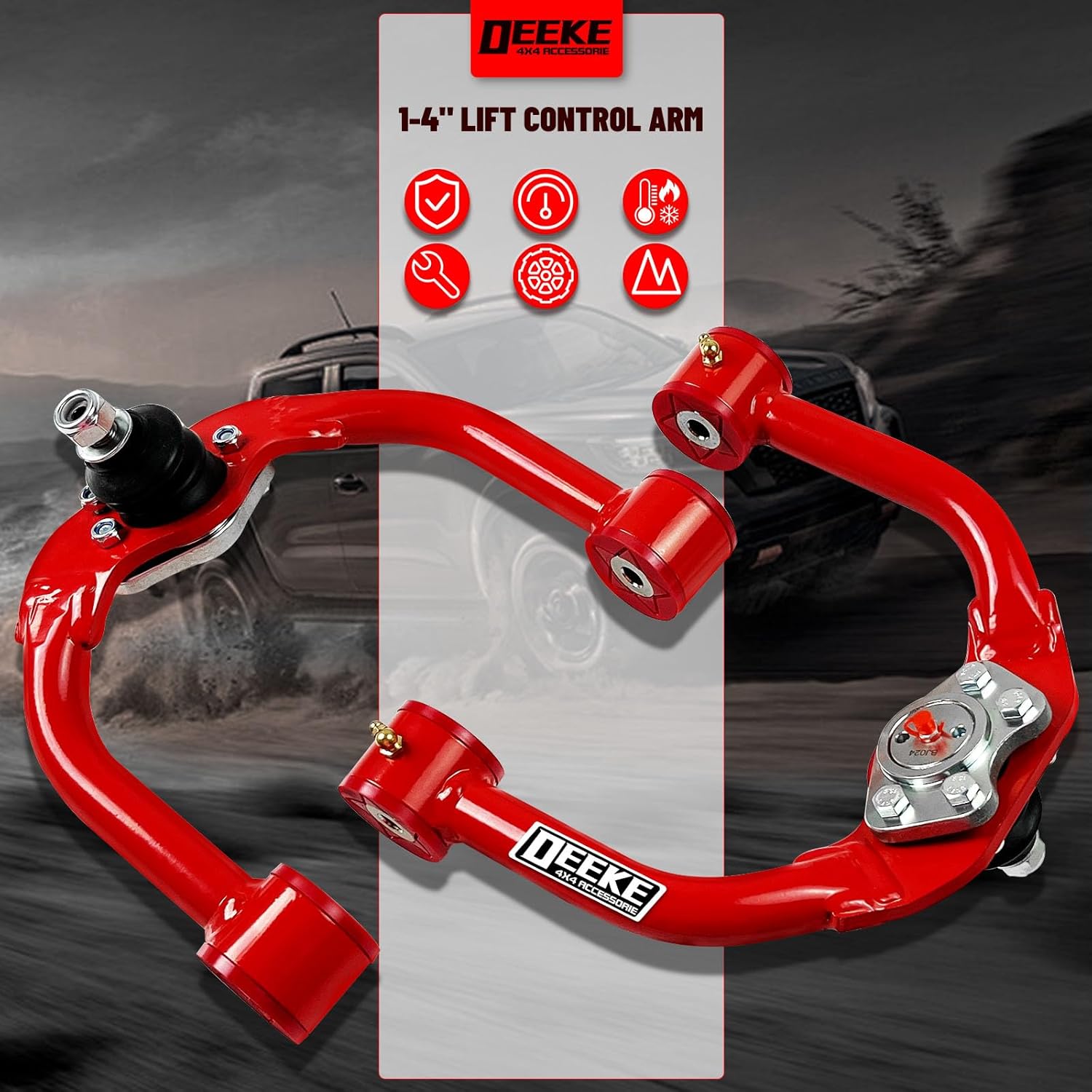

Os Braços de Controle Superior Dianteiro para Jeep Grand Cherokee e Dodge Durango, projetados para elevações de 1-4″, são a escolha ideal para quem busca desempenho e durabilidade em terrenos desafiadores. Compatíveis com modelos de 2011 a 2015, esses braços de controle são feitos de aço tubular de alta resistência, garantindo que sua performance se mantenha em níveis elevados mesmo nas condições mais adversas.
Compatibilidade: Os braços de controle são especificamente projetados para Jeep Grand Cherokee e Dodge Durango com elevações de 1-4″. É importante ressaltar que não são recomendados para veículos com altura de passeio ajustável que utilizam amortecedores e struts a ar.

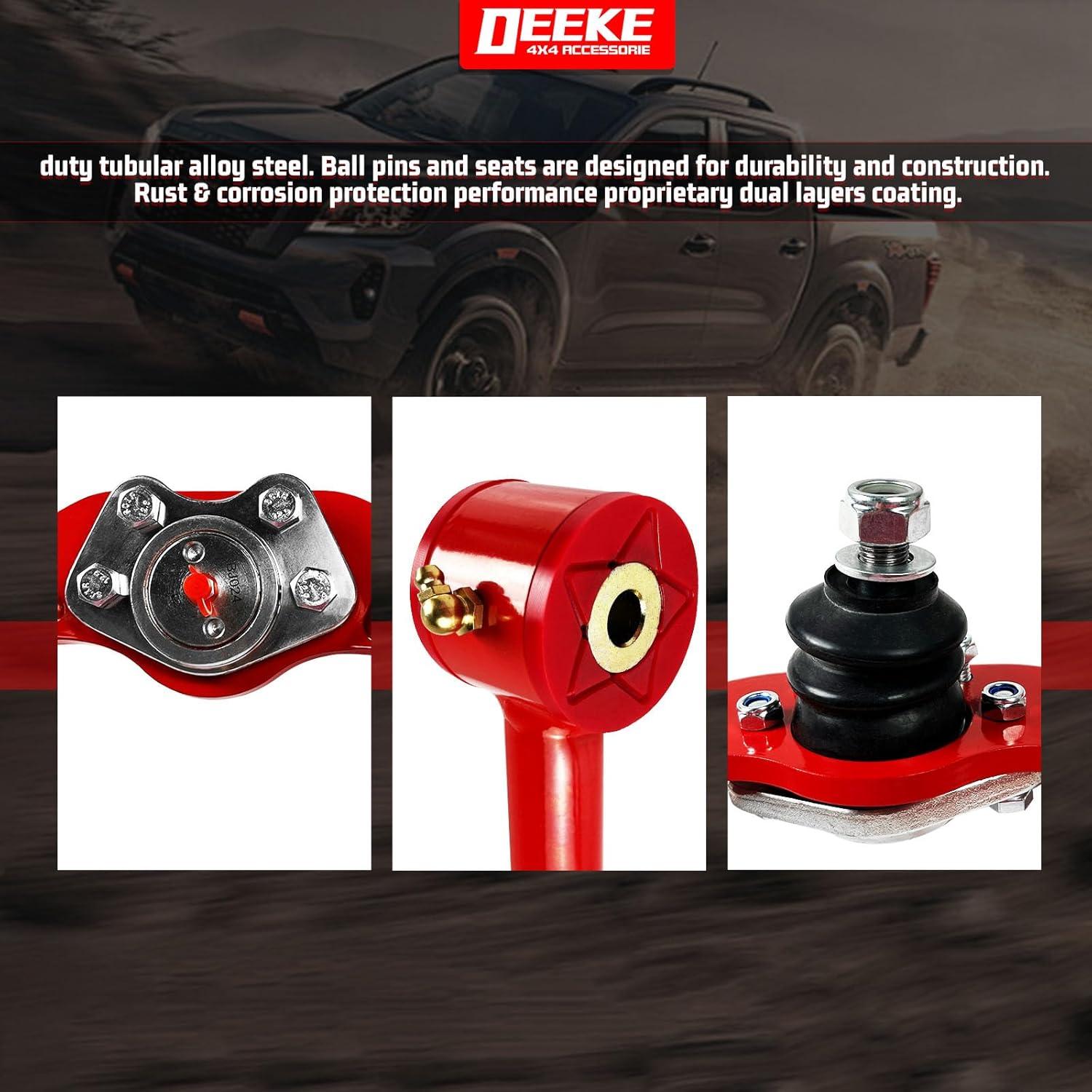

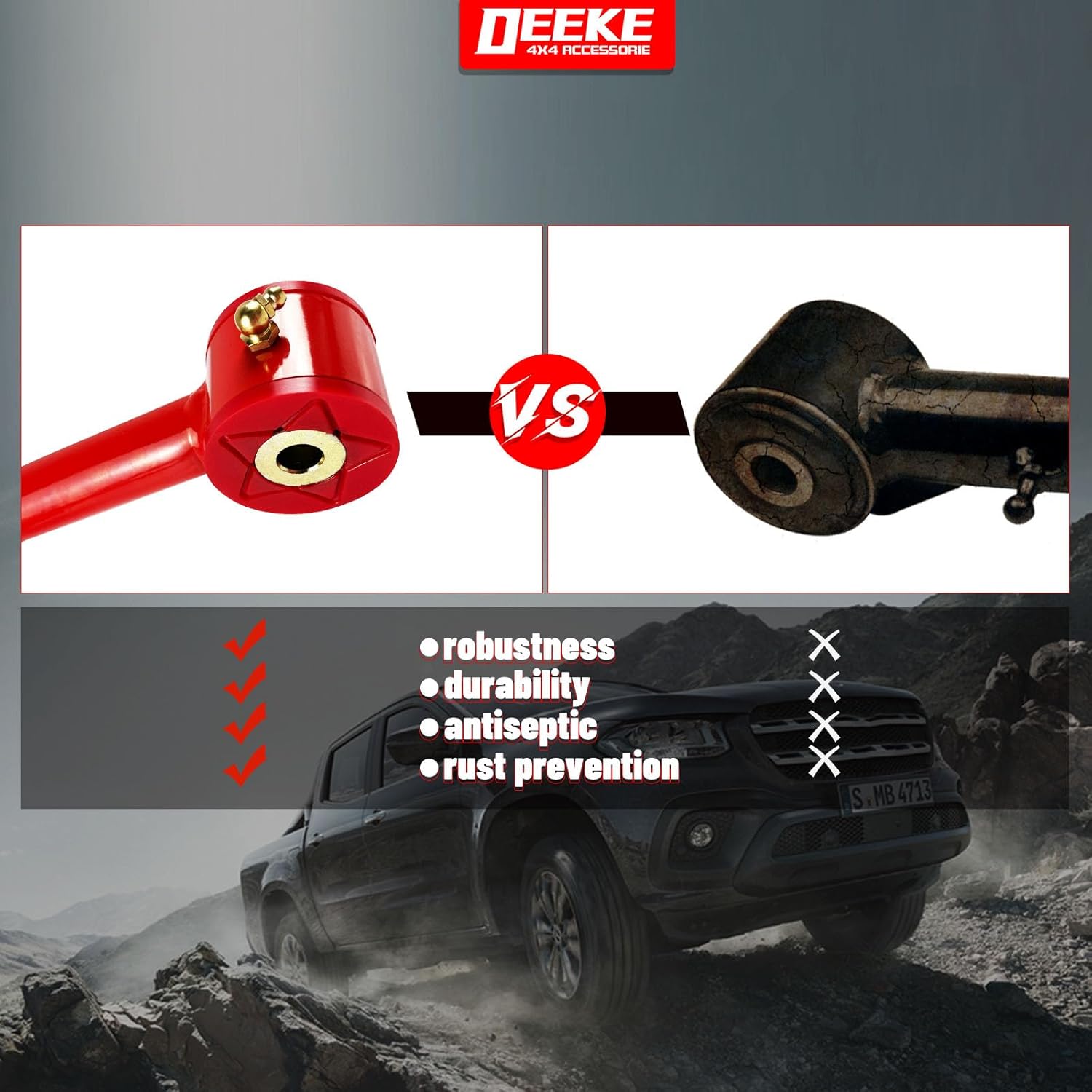

Material: Fabricados em aço tubular de liga pesada, esses braços de controle superior são sinônimo de robustez. Os pinos e assentos das esferas são meticulosamente projetados para garantir um desempenho duradouro. Durante a instalação, é crucial que o bico de lubrificação fique voltado para cima, assegurando a correta aplicação de graxa.
Segurança e Estabilidade: A posição do grande pino esférico e a câmara dos buchas do braço de controle de 1-4″ permitem ajustes precisos, melhorando a dirigibilidade e a estabilidade em curvas. Isso não apenas previne o desgaste prematuro dos pneus, mas também torna esses braços ideais para corridas de drift e aventuras off-road. A aplicação de graxa protege contra o desgaste em condições de pivô e outras situações que podem levar à perda do filme de óleo.

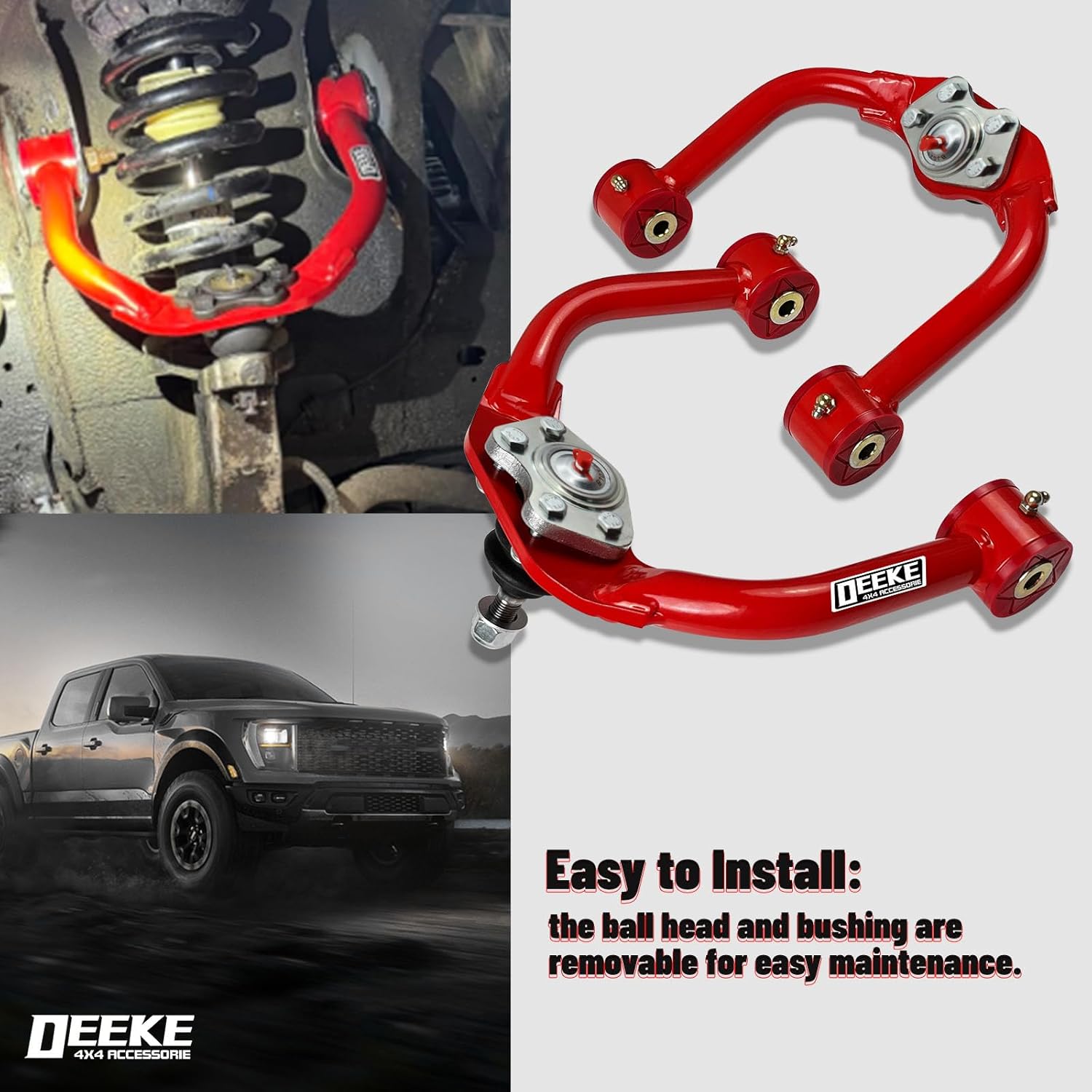

Fácil Instalação: O design dos braços de controle inclui cabeçotes esféricos e buchas removíveis, facilitando a manutenção. Eles são compatíveis com o Jeep Grand Cherokee de 2011 equipado com elevadores de mola ou kits de nivelamento, e possuem uma bota selada que protege a esfera e o soquete de danos ambientais. Não é necessário soltar os parafusos de montagem para liberar a pressão da graxa, embora a instalação profissional seja fortemente recomendada.

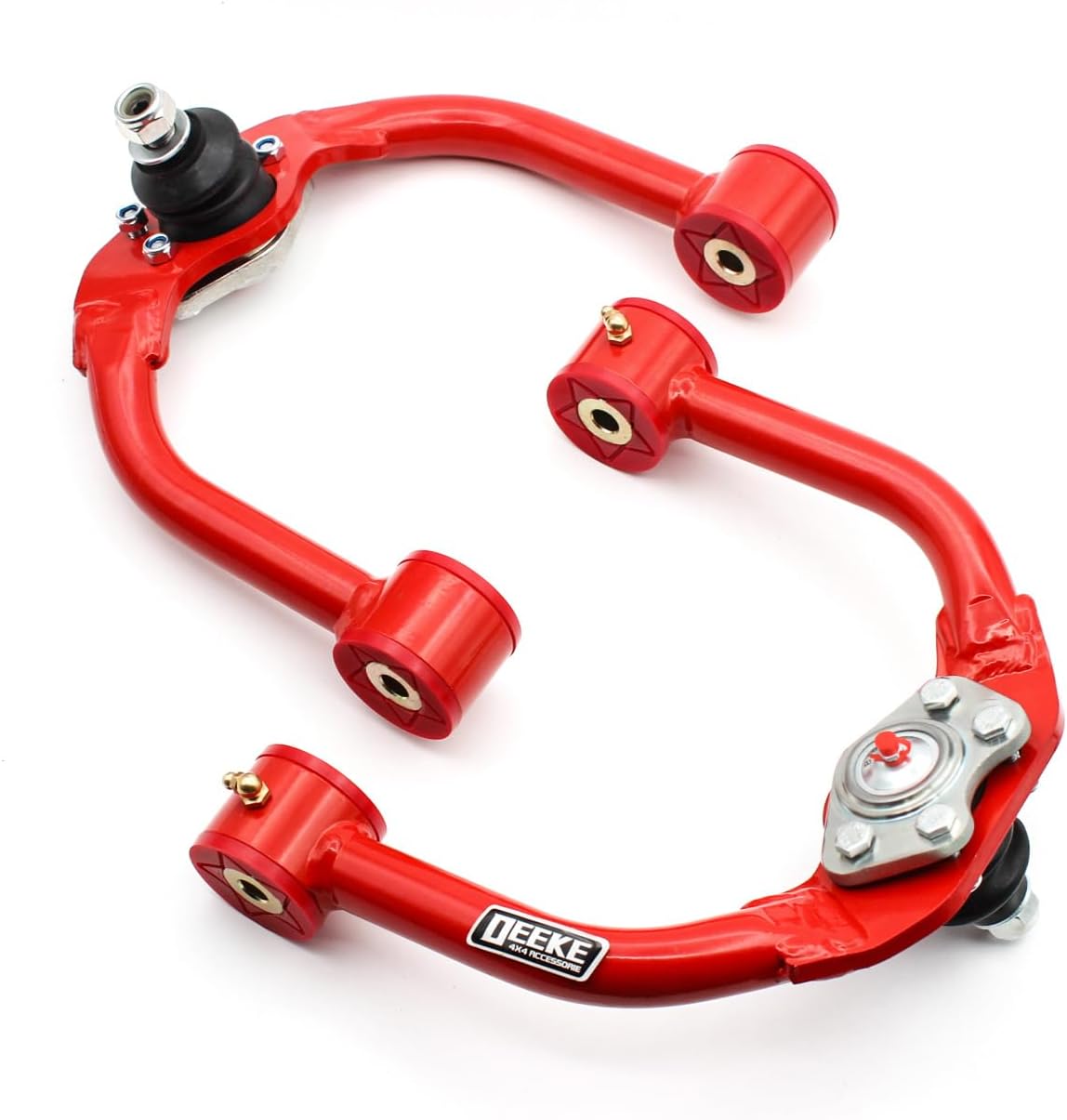

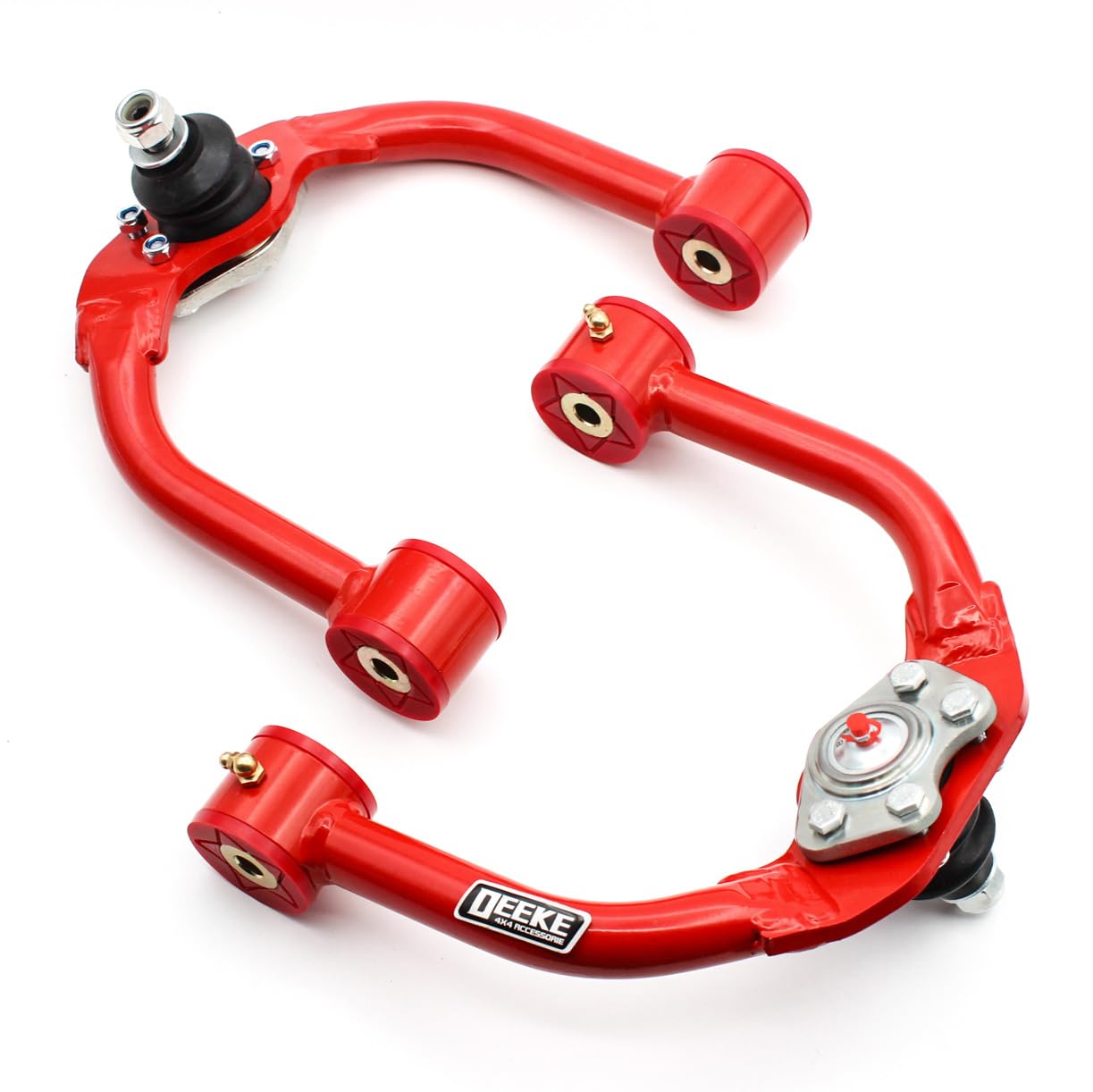

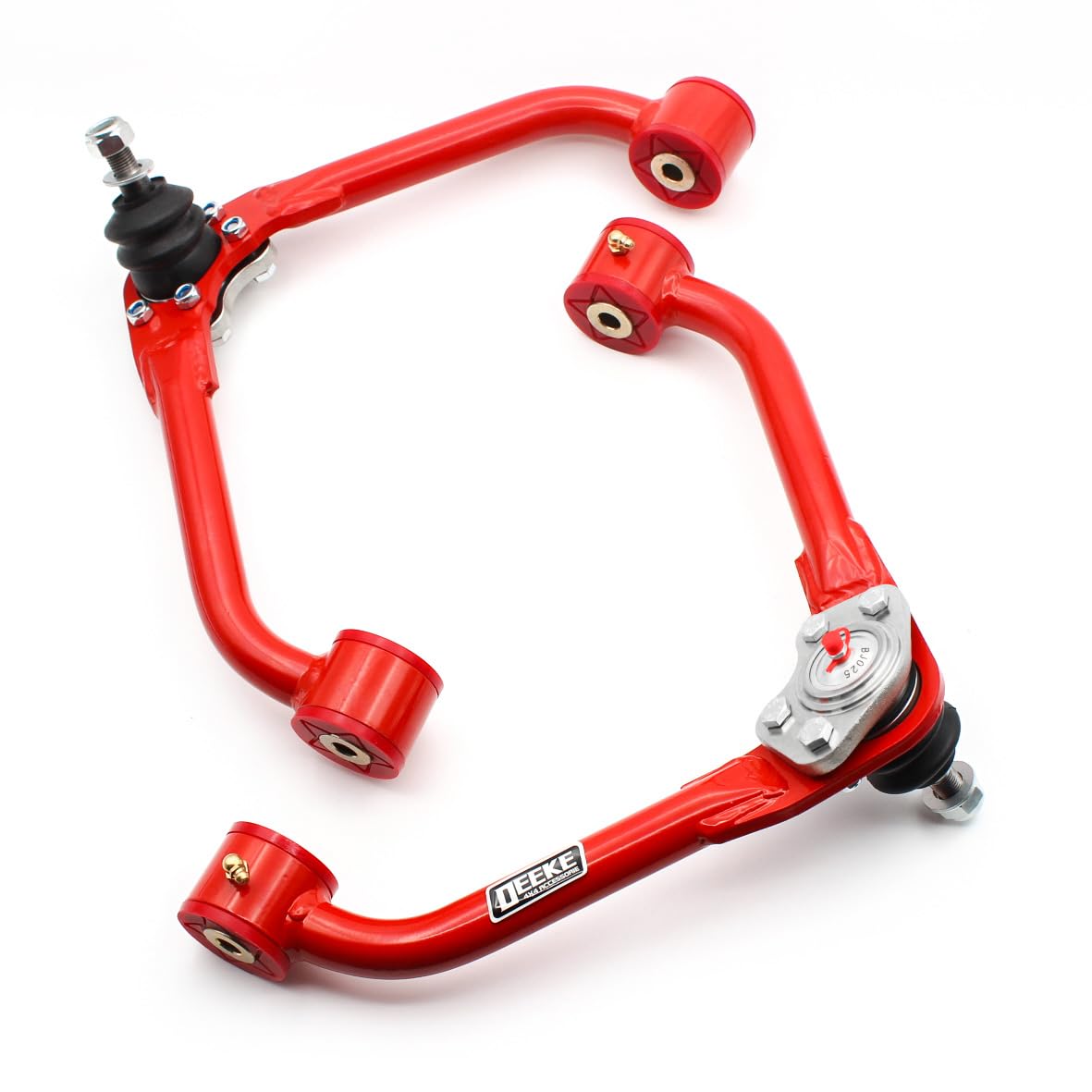

Pacote Inclui: O conjunto contém 2 braços de controle (lado esquerdo e direito) com as peças conforme ilustrado, incluindo juntas esféricas prensadas. Para qualquer assistência, entre em contato conosco e responderemos em até 24 horas.
### – Instruções de Uso:

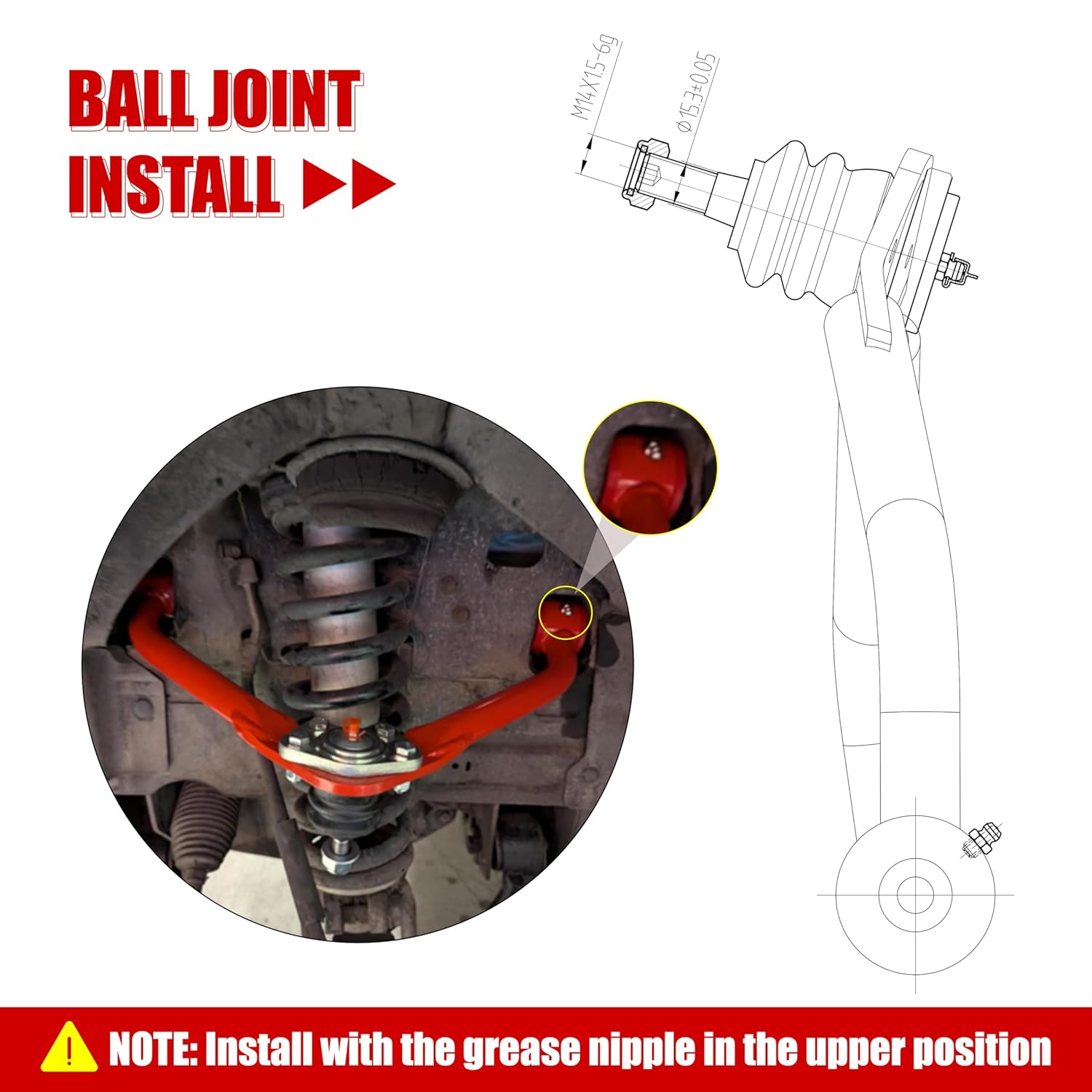

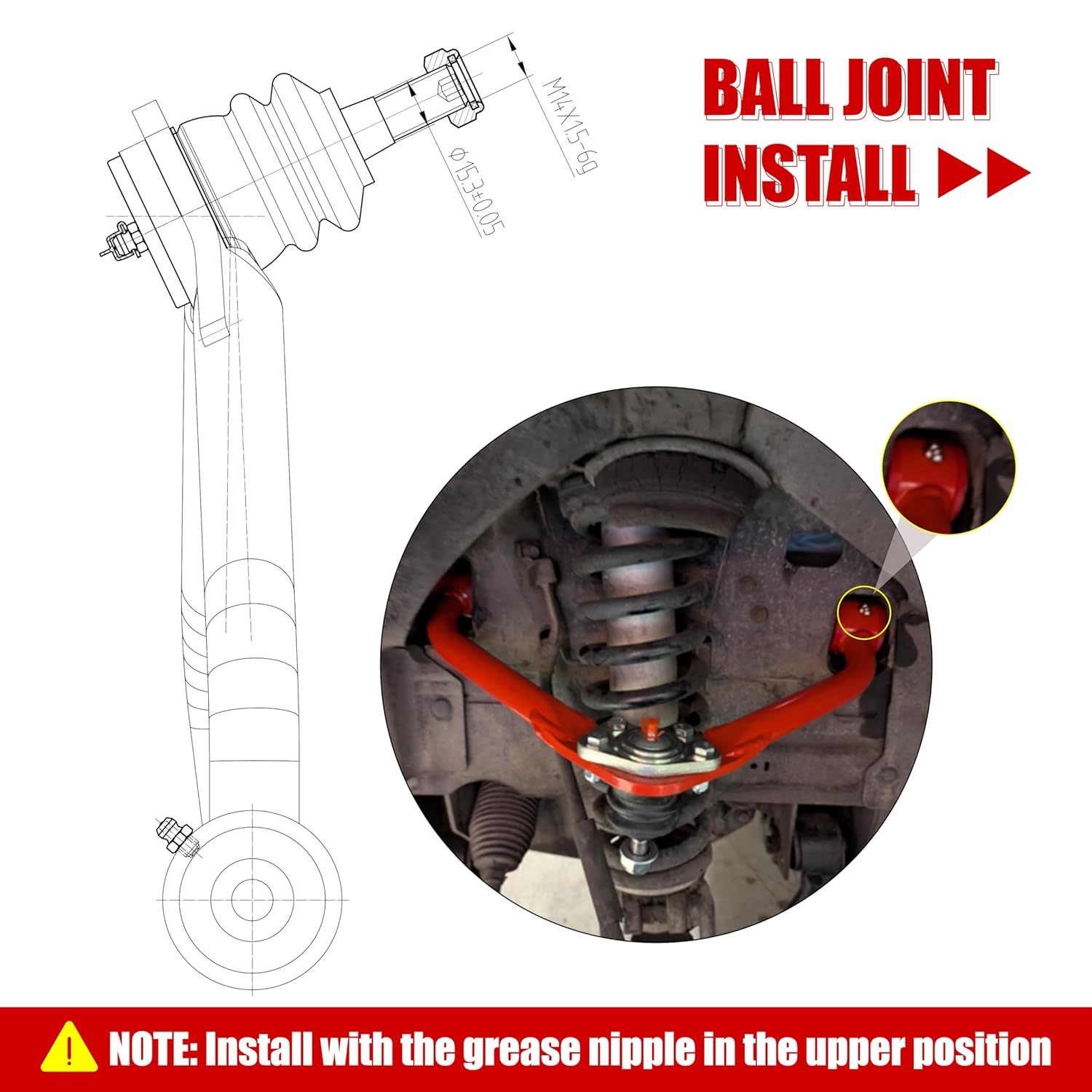

Para instalar os Braços de Controle Superior Dianteiro, comece levantando o veículo em uma superfície plana e segura. Remova as rodas dianteiras para facilitar o acesso. Desconecte os braços de controle antigos, tomando cuidado para não danificar os componentes adjacentes. Instale os novos braços de controle, garantindo que o bico de lubrificação esteja voltado para cima. Aperte todos os parafusos conforme as especificações do fabricante e reinstale as rodas. Após a instalação, é recomendável realizar um alinhamento de direção para garantir a máxima performance e segurança.
### Características do Produto:
– Material: Aço tubular de liga pesada.
– Compatibilidade: Projetado para Jeep Grand Cherokee e Dodge Durango 2011-2015 com elevações de 1-4″.
– Ajustabilidade: Posição do pino esférico para ajustes de camber.
– Manutenção: Cabeçotes esféricos e buchas removíveis para fácil manutenção.
– Proteção: Bota selada para proteção contra danos ambientais.
– Instalação: Não é necessário soltar os parafusos de montagem para liberar a pressão da graxa.
### Perguntas Frequentes (FAQ):
Pergunta: Esses braços de controle são compatíveis com modelos com suspensão a ar?
Resposta: Não, esses braços de controle não são recomendados para veículos com altura de passeio ajustável que utilizam amortecedores e struts a ar.
Pergunta: Qual é a vantagem de usar aço tubular de liga pesada?
Resposta: O aço tubular de liga pesada oferece maior resistência e durabilidade, suportando melhor as condições adversas de uso off-road e garantindo um desempenho superior.
Pergunta: É necessário um alinhamento após a instalação?
Resposta: Sim, é altamente recomendável realizar um alinhamento de direção após a instalação para garantir a máxima performance e segurança do veículo.
Pergunta: Como posso garantir a longevidade dos braços de controle?
Resposta: Aplique graxa regularmente e verifique as condições das buchas e juntas esféricas para evitar desgaste prematuro.
Pergunta: Posso instalar os braços de controle eu mesmo?
Resposta: Embora a instalação possa ser feita por um entusiasta, a instalação profissional é fortemente recomendada para garantir que todos os componentes sejam montados corretamente e com segurança.
BILL –
These controls arms were exactly as described, easy to install and looks great to boot! Highly recommend!
Glenn Wakefield –
The Deeke Front Upper Control Arms for my 2005-2022 Toyota Tacoma have been a game-changer in terms of handling and stability, especially when driving off-road. Made from durable tubular alloy steel, these control arms are clearly built to last. The material feels solid and sturdy, providing confidence that they’ll withstand rough conditions and provide consistent performance.
The installation process was straightforward, even with the removable ball head and bushings. These make maintenance much simpler than with other control arms I’ve used in the past. They’re designed specifically for Tacomas with spring lifters or leveling kits, which is perfect for my setup. However, I’d strongly recommend getting a professional to handle the installation unless you’re experienced, as it can be a bit technical.
Performance-wise, these control arms truly shine. With the 1-4″ lift, they offer a noticeable improvement in handling and cornering, even with the larger tires I use. The large ball position camber allows for better alignment and adjustment, which has helped prevent uneven tire wear—a huge plus since that can become costly. The grease application also helps keep things smooth under high-stress driving conditions, especially during off-road trips where pivots and intense angles are common.
Overall, the Deeke Front Upper Control Arms provide excellent value. They deliver enhanced safety and stability, making them an ideal choice for anyone who enjoys off-road driving or wants improved handling for their lifted Tacoma. Highly recommended for the serious Tacoma owner!
DAVID C –
These fit my 2008 Jeep Liberty KK perfectly and solved the problem where the stock UCAs hit the strut spring due to the 2″ lift kit. I’ve put it through it’s paces on my local 4wd roads and it seems very solid. Would buy from these folks again.
ROMO –
This kit is a joke. Their photo looks OK, but when you pull it out of the box this is feather-weight… meaning they used some really thin cheap tube. No way I’m installing this, it’ll fold in half the first time it sees any stress. Installing it requires a front end disassembly, so I’d have to do it twice after buying one of the US quality kits. The bushings and ball joints looks super cheap too. This thing is just flimsy. I’m going to bring to our next club meeting to have a laugh before I return it. How is this cheap thing even DOT legal?! Skip it and get a quality US made control arm.
BILL –
Excellent, it greatly improved the handling of the modified 2003 Jeep Liberty Sport.
DAVID C –
Really sturdy upper control arms for my wk2 Jeep Grand Cherokee with a 2 1/2 inch lift. It got everything aligned properly and corrected the squeaks from the previous control arms that I had installed. No issues with the grease nipples either like others have noted, just be sure to not over tighten them. So far so good. Highly recommend these control arms. A++
jp –
This is great product and a great deal for the price. Installed myself and looks great on my Tacoma.
Rich –
Another Great Idea for a Product that looks impressive on Paper, but not so great in real world.
The Good:
Beefy, strong and well made. Polyurethane bushings are larger in size than the original OEM design and they are supposed to last a very long time. Being greasable is another great idea.
Ball Joint: removable, greasable (!) and larger in size than the OEM design. Rubber Boot is thick and large.
The Not so good:
The 90-degree zerks (Metric M6-1.00 threads) at the bushing were supposed to fit in the small, confined space available in the frame cups on the inner fender. However, during the installation I struggled to get the Control Arms to go deep enough inside in order for the holes to align for the mounting bolts. This is when I broke them both zerks. Then I realized why: they were hitting at the inner top of the cups, thus not allowing the Control Arm to get up enough to fit. I ended up taking off the Control Arm, using another set of zerks to apply plenty of grease (until it started to come out) and then used two of the shortest M6 bolts that I had to cap the threaded holes to prevent dirt to reach inside.
Next: the large Washers that were intended to go on both sides of each bushing, require two sets of hands for installation. Even when I applied some sticky grease, they continue to slide out due to the very tight fit. When I managed to get then all in, the Control Arm was still not going in deep enough for the holes to align. I wasted about an hour and a lot of effort, with no prevail. Then I realized why: the washers are too large on the Outside Diameter and they were hitting inside the rounded frame cups. Washers should have about 44-45 mm Outer Diameter instead of the 54 mm Dia.
I ended up installing the Control Arms without the Washers, but they still didn’t want to go all the way for the proper hole alignment: the Outer edge of the polyurethane Bushings should be tapered (!) at 45 or 60 degree angle. Otherwise, you need to apply military force to make them go all the way in, so that the bolts could slide in.
Remember: you need another person to help you with the installation, holding and jiggling (up and down) on the Control Arm, until all the 3 holes come into a perfect alignment, so that you can finally slide through the mounting bolt.
I was too tired and exhausted after several good hours to be able to continue with the Control Arm installation on the other side (driver side) of the Jeep.
It should take a lot less time, after the hard learned lessons from the previous attempt at installation.
AGAIN: a great idea on paper that does not match the reality in the real world !
I should get paid for the feedback and for the product improvement provided.
Good Luck.
UPDATE: after a few days of driving the Jeep, I did a quick visual inspection. Noticed immediately a dent in the rubber Jounce Stop Bumper. The zerk on the Ball Joint made it and the red plastic cap was also missing. Note: I have a small Lift on the Jeep (about 1-1.5″ on the front and 2″ on the rear). Just by driving on some of the city streets makes the suspension travel up-and-down quite a bit: wavy roads and too many potholes and cracks of all sizes in the asphalt. Looks like I would have to find some more very short M6 x 5mm bolts with a very flat hex head, to replace the zerks at the ball joint.Anything longer, will bottom out and will stick out the same as the zerks.
I will come back later with another update.
UPDATE: found a set of 4 large & thin Washers (as described above) at Ace Hardware (corporate owned) store. I managed to re-install the RH Side Control Arm with the washers on both sides of the polyurethane bushings. What a PITA ! You need 6 hands maybe, to manage to do everything together. I would like to see in a video how the designers managed to do the task of installation, with all the components they envisioned.
I will have to do the installation process on the LH side of the Jeep, after I will find another set of 4 large & thin Washers of the proper outer Dia .
Rich –
I looked a long time for control arms like this. There are two other brand names that supply similar. The other two brands are $659 and the other is $459. These at $199 take the gold award for value and quality. They are exactly the same as the others. But this one only costing half the price of one and the other one being three times the price of the Deek’s. The welds are good quality as are the bushings. The ball joint is the equivalent of the ball joint for the Escalade and the same size for a replacement. They are the same dimensions of the other two competitors. There are no directions with them, but you don’t need any. Pretty straight forward. If you don’t know how to install them then you will have to find a shop to do that for you. These will correct he caster/camber angels for a lift on a WK Grand Cherokee. If you have a small lift 4 inches or under on your Jeep these are a must period. This will save your tires. Also if you continue to run the stock upper control arms they will eventually fail and your Jeep could suffer a large bit of damage to the front suspension. These provide a very nice improved ride and smoother ride. Mine installed very quickly. Does not require a lot of tools. But you do have to have the correct tools. I highly recommend these. You will not be disappointed I promise. These are the best deal going out there now. Just get them if you find them in stoke from this seller. Hope this helps someone out there that is searching for these. I have been turning wrenches all my life and worked on everything you can think of including heavy equipment, tractor trailers, cars, motorcycles, boats and you name it. So I know what I am talking about.
Glenn Wakefield –
These front upper control arms are particularly for those looking to enhance their vehicle’s suspension system with lift kits ranging from 1 to 4 inches.
Key features included:
– Heavy-Duty Construction: Crafted from robust tubular alloy steel, these control arms are designed for durability and long-term performance, making them ideal for both everyday driving and more demanding conditions.
– Rust and Corrosion Protection: The dual-layer coating provides effective protection against rust and corrosion, ensuring that the control arms maintain their integrity over time, even in harsh environments.
– Enhanced Handling: The inclusion of large ball position camber bushings improves handling and reduces tire wear, making these control arms suitable for applications such as drift racing and off-road adventures.
– Simplified Installation: The design features a removable ball head and bushing, facilitating an easier installation process. Additionally, no further adjustments are required for vehicles equipped with spring lifters or leveling kits.
– Environmental Protection: A sealed boot protects the ball and socket joints from dirt, moisture, and other environmental elements, contributing to the longevity and reliability of the control arms.
In summary, these front upper control arms provide a significant upgrade for Jeep Liberty owners seeking improved stability and durability in their suspension system. With their robust construction and thoughtful design features, they are well-suited for both on-road and off-road applications.
