### Descrição do Produto

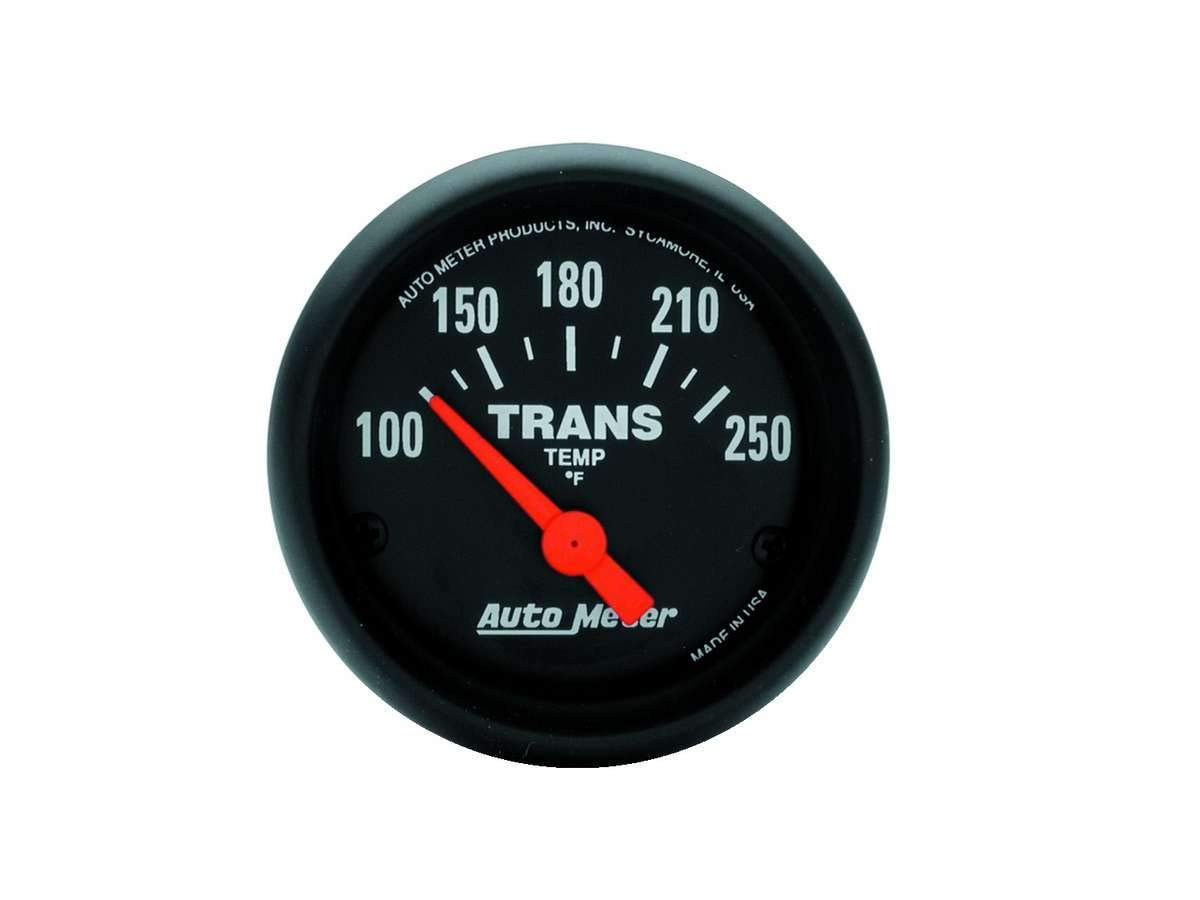

O AUTO METER 2640 Z-Series Electric Transmission Temperature Gauge, com diâmetro de 2 1/16”, é a escolha ideal para entusiastas de automóveis que buscam precisão e confiabilidade em medições de temperatura de transmissão. Este medidor é projetado com iluminação incandescente tradicional que ilumina ao redor do perímetro do mostrador, proporcionando uma leitura clara e visível em qualquer condição de iluminação. Compatível com sistemas elétricos de 12 e 16 volts, ele se adapta facilmente à maioria dos carros de rua e de corrida, garantindo que você tenha sempre informações precisas sobre a temperatura da transmissão.
O kit do medidor inclui um sensor de temperatura NPT de 1/8”, adaptadores NPT de 3/8” e 1/2″, além de um conjunto de lâmpada e soquete, capas de lâmpada vermelha e verde, hardware de montagem e instruções detalhadas para instalação. Isso significa que você terá tudo o que precisa para uma instalação rápida e eficiente, sem complicações.
Os instrumentos elétricos de núcleo de ar da Auto Meter são comprovados em corridas, oferecendo leituras rápidas e precisas, enquanto mantêm fluidos perigosos fora do veículo. Isso não só aumenta a segurança, mas também a durabilidade do seu sistema de medição, tornando-o uma escolha superior em comparação com outros produtos disponíveis no mercado.
### Instruções de Uso:
Para utilizar o AUTO METER 2640 Z-Series Electric Transmission Temperature Gauge, comece pela instalação do sensor de temperatura no ponto de medição da transmissão. Utilize os adaptadores NPT fornecidos para garantir um encaixe seguro. Conecte os fios do sensor ao medidor, seguindo as instruções detalhadas incluídas no kit. Após a instalação, ligue a ignição do veículo e verifique se o medidor está funcionando corretamente. A leitura da temperatura da transmissão será exibida no mostrador, permitindo que você monitore a performance do seu veículo em tempo real.
### Características do Produto
– Diâmetro: 2 1/16” (52 mm)
– Iluminação: Incandescente tradicional ao redor do mostrador
– Compatibilidade: Sistemas elétricos de 12 e 16 volts
– Kit Completo: Inclui sensor de temperatura NPT de 1/8”, adaptadores NPT de 3/8” e 1/2″, lâmpada e soquete, capas de lâmpada vermelha e verde, hardware de montagem e instruções
– Tecnologia: Instrumentos elétricos de núcleo de ar para leituras rápidas e precisas
– Segurança: Mantém fluidos perigosos fora do veículo
### Perguntas Frequentes (FAQ)
Pergunta: O medidor é fácil de instalar?
Resposta: Sim, o AUTO METER 2640 Z-Series vem com todas as peças necessárias e instruções detalhadas, tornando a instalação simples e direta.
Pergunta: Este medidor é compatível com meu carro de corrida?
Resposta: O medidor é compatível com sistemas elétricos de 12 e 16 volts, o que o torna adequado para a maioria dos carros de corrida e de rua.
Pergunta: Como posso garantir que o sensor de temperatura funcione corretamente?
Resposta: Certifique-se de que o sensor esteja instalado corretamente no ponto de medição da transmissão e que todas as conexões elétricas estejam firmes.
Pergunta: A iluminação do mostrador é ajustável?
Resposta: A iluminação é incandescente tradicional e não possui ajuste de intensidade, mas proporciona uma boa visibilidade em diversas condições de luz.
Pergunta: O que fazer se o medidor não estiver funcionando?
Resposta: Verifique todas as conexões elétricas e a instalação do sensor. Se o problema persistir, consulte as instruções ou entre em contato com o suporte técnico da Auto Meter.
Dice –
I bought this gauge for my 93 GMC K1500 to monitor the transmission temperature when pulling a trailer. And for this winter, I put a plow on the truck, and I would also like to monitor the temperature then as well, because over winter I use a winterfront so I don’t lose engine heat when the truck’s block heater is plugged in. Now if it starts to get hot, I can always open up the winterfront to let in more airflow.
So far I have found the gauge to work flawlessly. I have it installed in the test port of my 4L60E, where the mechanic that does transmission work for me suggested I put it (I’m a mechanic, but I don’t work much with transmissions). I also have a Hayden 678 tranny cooler installed in front of the AC condenser. When driving down the highway at 60mph, I see temps of about 125-130. Mixed stop and go city and some short 50mph stretches have stayed under 150. When pulling a 20 foot loaded car hauler at about 8500 lbs gross weight with mixed city and highway, the highest spike on a 1 mile long moderate hill at 60mph, I have touched 210 if I really push it. Backing off and taking it easy up the hill shows 190-200.
The gauge comes with:
-Gauge
-mount
-sender with adapters
-bulb and socket with red and green covers (which I found dulled the light)
So people are aware, there is no wiring or connectors included. You will need some spade connectors, as well as some length of 18gauge wire. I also suggest installing an in-line fuse with a rating of 5amps.
As of now, I have had the gauge in the truck for a little over 1 month and have no complaints. You may want to consider buying a different mount though. The one included gives you one option, which for my truck worked well. It is installed in the pocket where the stock radio used to be. I have uploaded a picture of where it is.
darklight –
Easy enough for anyone to wire in. Temp sender threads fit transmission test port perfectly on 1996 f250. I would highly recommend!
Jake –
Easy to install , have not had it operating yet.
average-guy –
Works as intended. Was easy to wire. It comes with a sender that is a bit long to use in the test port of a GM 700r4 and still have good fluid flow past it, had to purchase a shorter sender separately. Quality is spot on as expected from Autometer.
mike –
Gauge works well for my purposes. Great subdued look. Just needed a general idea of how hot my trans is running and didn’t want to plumb a mechanical gauge with hot trans fluid into my dash. Readings are always consistent based on how I’m driving so I have no reason to question its accuracy.
I Needed to fix leaking transmission lines anyway, so I cut the hard lines before the crimp, used the 3/8 fitting for the sender to attach to the top of a brass tee, connected tee to hard line with a compression fitting (which also provides the ground back through the transmission and/or engine support bracket) and finally a barb fitting to reconnect the soft hose. I ended up buying another sender (AutoMeter 2258) and duplicated the setup for the pre and post cooler lines so I can flip back and forth (to check how well the cooler is working) on the same gauge using a toggle switch.
J H Murphy –
came with all needed to install and working good, have in now for 3 months. I pull my boat trailer, so on trips now I can monitor trans temps. As advertised and works good.
Dice –
Since the kit comes with a single wire sending unit, it will ground through the transmission threads. If you are not using a trans port and instead using rubber lines with a T, add a ground wire below the insulation between the sender and the brass fitting used. The sending unit ground is connected either to chassis or battery negative. The wire on the top (positive) of the sending unit connects to the (S) terminal on the gauge. I connected the (I) terminal to 12v positive at cig outlet, as well as the ground to the ground for the cig outlet. The transmission shift bezel light was used for the light source. Swapped out the stock bulb with a SEALIGHT 6000k LED, brighter and it stays cooler. A 2″ hole saw and some sand paper worked well to get a perfect fit for the gauge itself.
Used an IR gun to verify accuracy of the sending unit and it seems to be right on. I connected the sending unit with a 3/8″ fuel pressure t fitting from glowshift + a female to male npt 1/8″ brass extender. Put that on the hot line(output) before the radiator with some 3/8″ transmission line as well as some 3/8″ brass barb splicers. So far so good.
Gardening Mama –
Made in USA, make sure grounds are excellent, ran mine to trans pan bolt next to sensor, added ground strap from tail housing to seat floor brace, check with laser temp gun.
Amazon Customer –
Good gauge that seems to work well.
It comes with a good selection of adapters to plug the sending unit into the transmission.
I like the fact that you can use blade or ring terminals to hook the wires to the gauge. I used ring terminals because I think they’re more secure. Be aware this kit doesn’t come with wires or terminals though.
This kit is really designed to be mounted in a hole in the dash. The plastic mounting hardware that comes with it is kind of flimsy, but would probably work. I didn’t use the mounting hardware because I mounted it differently. If you’re going to mount it on a flat surface somewhere you’ll need a mount like this one -> Auto Meter 2204 Mounting Cup. Be aware if you do use that mounting cup that you’ll have to cut short the 2 threaded rods on the back of the gauge before it will slide all the way into the cup.
I really like the light system in this thing. It’s easy to see at night, without being obnoxiously bright. One thing I don’t like though is that the bulb makes the metal housing of the gauge get stupid hot. Like, you can’t hold your hand on it, hot. It was so hot I was actually worried it would melt something, so I bought one of the auto meter LED bulds -> Auto Meter 3285 LED Bulb Kit. It replaced the stock bulb perfectly and it lights the meter like it should without getting hot.
Wiring instructions that come with it are pretty straight foward.
Overall, I like it.
T Mullet –
I blew a transmission (188000 miles) and had this installed during the replacement. I didn’t pay enough attention to the transmission during its life, but this would have helped. I had the transmission shop install it. Recommended! I will probably add a differential temperature gauge next.
