### Descrição do Produto
O Kit de Correia Dentada com Bomba d’Água AISIN TKT-026 é a solução ideal para quem busca qualidade e confiabilidade na manutenção do motor de veículos Lexus e Toyota. Este kit é projetado para ser compatível com modelos selecionados, incluindo o Lexus ES300, ES330, RX330, RX400h, e os Toyota Camry, Highlander, Sienna e Solara. A AISIN, reconhecida como a principal fabricante de bombas d’água do mundo, oferece um conjunto que combina todos os componentes essenciais para um serviço completo de correia dentada e bomba d’água.
A lógica por trás do Kit de Serviço de Correia Dentada/Bomba d’Água da AISIN é simples: ao substituir a correia dentada, é prudente trocar a bomba d’água ao mesmo tempo. O trabalho envolvido na substituição de um desses componentes é semelhante ao de substituir todos eles. Portanto, ao optar por este kit, você economiza tempo e dinheiro a longo prazo, garantindo que todos os componentes estejam em perfeito estado de funcionamento.
O kit inclui componentes que correspondem aos padrões de Equipamento Original (OE), assim como os que seu veículo tinha ao sair da linha de montagem. Não há peças genéricas aqui; você encontrará marcas de confiança como AISIN, Mitsuboshi, Toyo e NTN. Cada bomba d’água é fabricada com um avançado corpo de alumínio fundido e componentes internos premium, incluindo selos de cerâmica de carbono, que garantem durabilidade superior.

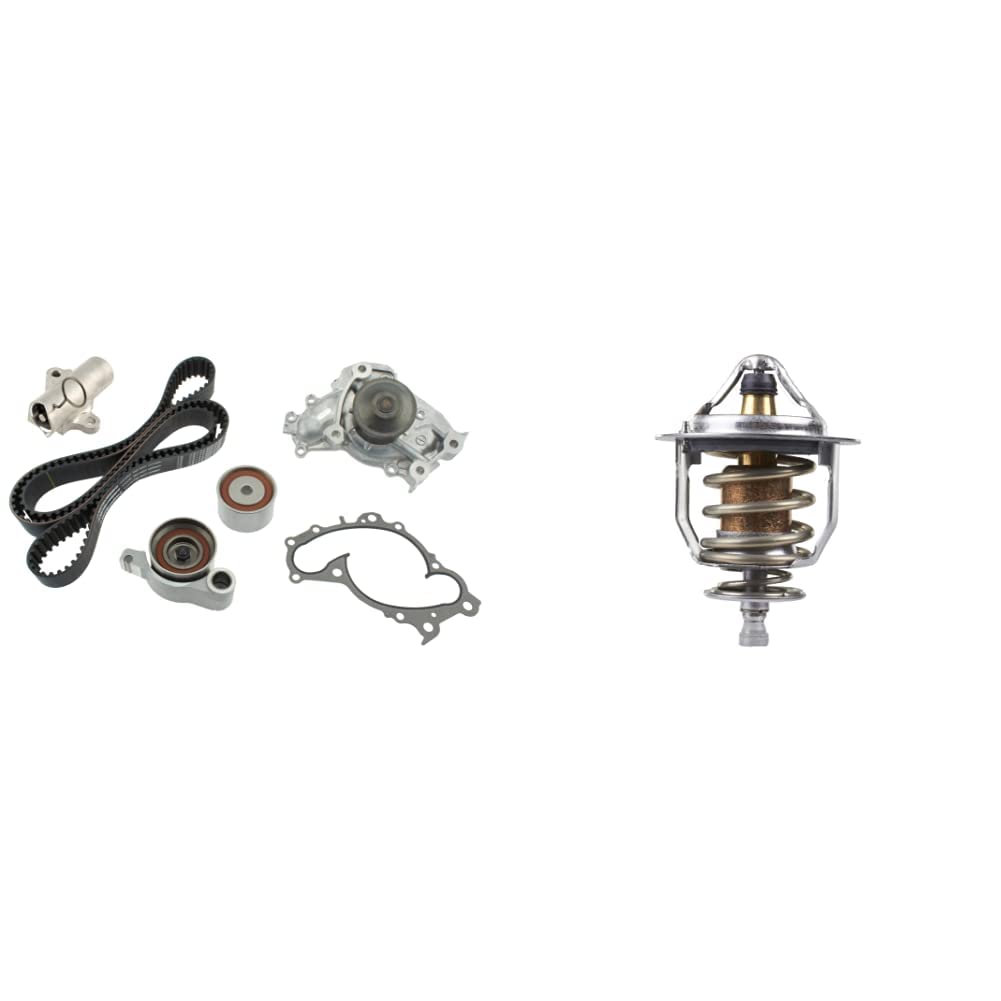

O Kit AISIN TKT-026 vem completo com todos os itens necessários para a instalação: Bomba d’Água, Correia Dentada, Tensionador, Polias, Junta e Instruções de Instalação, tudo em uma embalagem conveniente, pronto para ser instalado.
### Instruções de Uso:
Para utilizar o Kit de Correia Dentada com Bomba d’Água AISIN TKT-026, siga as instruções de instalação incluídas no kit. É recomendável que a instalação seja realizada por um profissional qualificado, pois envolve a remoção de componentes do motor e a necessidade de ferramentas específicas. Certifique-se de verificar a compatibilidade do motor com o veículo antes da instalação. Após a instalação, realize testes de funcionamento para garantir que todos os componentes estejam operando corretamente.
### Características do Produto
– Compatibilidade: Projetado para Lexus (2002-03 ES300, 2004-06 ES330, 2004-06 RX330, 2006 RX400h) e Toyota (2002-06 Camry, 2001-07 Highlander, 2004-06 Sienna, 2004-08 Solara).
– Componentes OE: Inclui Bomba d’Água, Correia Dentada, Tensionador, Polias e Junta, todos com especificações de Equipamento Original.
– Durabilidade: Bomba d’água com corpo de alumínio fundido e selos de cerâmica de carbono para resistência superior.
– Facilidade de Instalação: Todos os componentes vêm em uma única caixa, com instruções claras para facilitar a instalação.
– Marca Confiável: AISIN é reconhecida mundialmente pela qualidade de seus produtos, especialmente em bombas d’água.
### Perguntas Frequentes (FAQ)
Pergunta: O kit é compatível com meu veículo?
Resposta: O kit AISIN TKT-026 é compatível com modelos específicos de Lexus e Toyota. Verifique os detalhes de compatibilidade na descrição do produto ou utilize o verificador de compatibilidade.
Pergunta: Posso instalar o kit eu mesmo?
Resposta: Embora seja possível realizar a instalação em casa, recomenda-se que um profissional qualificado execute o serviço para garantir que todos os componentes sejam instalados corretamente.
Pergunta: O que está incluído no kit?
Resposta: O kit inclui a Bomba d’Água, Correia Dentada, Tensionador, Polias, Junta e Instruções de Instalação.
Pergunta: Qual é a garantia do produto?
Resposta: A AISIN oferece garantia limitada para seus produtos, cobrindo defeitos de fabricação. Consulte as informações específicas de garantia no manual do produto.
Pergunta: O que acontece se eu não trocar a correia dentada e a bomba d’água ao mesmo tempo?
Resposta: Não trocar esses componentes ao mesmo tempo pode resultar em falhas prematuras, já que o trabalho de substituição é semelhante. Isso pode levar a custos adicionais e danos ao motor.
edwin González –
Really can’t do better than OEM. Aisin is Toyota’s supplier. A couple tips for the diyer’s in adition to the good tutorials available online.
– I wouldn’t do this without an impact wrench. I bought one for the project and was glad I did. It bailed me out a few times.
-Engine pulley can be a pain to get off. First the bolt was stuck, impact wrench would not get it so I tried did the starter bump trick, where you brace a wrench against the car’s frame and hit the starter briefly. Still stuck, so I put the wrench back a bit from the brace point so the starter could get a run at it and that finally got the bolt off. Second was that the pulley was still stuck. I ended up fabricating a puller by drilling 3 holes in an aluminum plate. the outside two bolt to the threaded part of the pulley. The middle one was tapped so I could drive a bolt into the shaft forcing the pulley off.
– On these vehicles you will find that the water pump has part of it’s flange behind the back part of the plate that the cover attaches to. So to get it off besides removing the bolts and nuts that held it on, I had to use a vice grip to remove the two long studs sticking out of it. Then use an impact to remove the cam pulley closest to you while holding the wheel from turning with your hand. Remove as many of the back-plate bolts that you can get to which will free up the back plate enough that you should be able to sneak the water pump out from behind it with some finesse. Use the impact to put the cam wheel back on backing it up again with your hand.
– This kit with the “loaded” tensioner where all you have to do is pull out the pin is super nice. Worth the extra money.
– Good luck, this one is a little tricky.
BOOKBURNER01 –
Complete kit. All components manufactured in Japan. Very high quality components. Kit includes installation instructions, however, they are vague and confusing. Clarity and better illustrations would reduce frustration. Belt is marked 3 places: Bank 1, Bank 2, Crankshaft. Timing belt does not come with direction of rotation markings. Mark old timing belt identical to new belt. Indicate direction of rotation of belt. Match up old to new belt. Mark new belt with direction of rotation at crank. Line up marks. You saved yourself some genuine frustration by marking belts. You will likely need 2 special tools: Camshaft rotator and Harmonic Balancer bolt stabilizer/holder tool. Both available on AMAZON. Radiator may not drain completely when radiator drain valve is removed. Consider removing thermostat housing, or upper radiator hose and attach wet/dry shop vacuum. If cooling system not drained completely, this task can get messy due to massive coolant spill. Time estimate, backyard, working on ground/jackstands, replacing timing belt, idler, tensioner, water pump – about 7-8 hours.
Yordan V. –
I purchased this kit for my 2004 Lexus RX330. The Lexus dealership service department was quoting me $450 for the same OEM parts so this was definitely more reasonably priced.
I took it to my Lexus dealer for install and they noted that the kit appeared high quality and installation process was the same as OEM.
My own inspection of the belt and metal components suggests everything seems solid and durable.
I have no major concerns and expect this kit will perform as designed. Very satisfied.
edwin González –
I bought this kit, installed it but after a few days the engine light came on, the scanner told me it was a bad position of the cranshaft, and my problems were solved until I bought the original timing belt. All the other accessories have worked perfectly for me. If you are thinking of buying this package, consider buying the OEM timing belt. I also add that the marks on it had been erased and when measuring it with the OEM one, it is longer or maybe it was stretched too much and it went over 2 or 3 teeth on the shaft.
Ryan –
El kit me llegó sin la junta cuando en la
Descripción dice que trae la junta.
daiyashri singh –
Perfect fit for my 2006 AWD Sienna. Excellent quality
Amazon Customer –
No lo e usado pero si son las partes originales del vehículo Toyota Solara 2008
Amazon Customer –
Good quality parts at a reasonable price.
Completely satisfied.
Hector h. –
This timing belt kit from Aisin worked beautifully in my 2006 Toyota Sienna when it needed a timing belt replacement for my minivan. Installed it by myself and it took me about 6 hours; but it was worth it as this product exceeded my expectations. The quality was superb, parts were made in Japan and it met Toyota OEM specifications. I can tell these parts were delicately manufactured and it is well worth the price considering how much this job would cost at a Toyota dealership. Will definitely order this again if I need any future repairs.
Robert –
This is my 3rd or 4th Aisin TB/WP kit and they have always been perfect, whether Honda/Toyota/I4/V6. OEM quality belt, bearings, pump, adjuster. Never had a failure from one of these units. The backplate for the upper TB cover and camshaft wheels OVERLAPS the Water pump edge preventing otherwise easy removal- deliberate effort to force the work to a shop. BUT–There is a way to remove the WP without pulling the cam wheels and backplate – loosen the backplate bolts before removing the TB – the cam wheel spokes will have to be aligned over the upper backplate bolts to loosen (not remove). I just loosened the lower bolts and got it to work (with struggle), but I had already removed the belt and couldn’t turn the cam wheels off alignment. You will also have to remove the 2 long studs with a stud remover tool. The torx bit on the end of the stud will likely snap due to the force required. Turn them slowly with the stud tool up against the block-will have to maneuver around the surrounding obstacles. RISK!-the stud might snap off in the block- unlikely but that’s why you need to be careful, turn slowly/evenly/measuredly. Some will prefer to remove the cam wheels to replace the oil seals. The Camshaft Wheel bolts are like 90 ft-lbs plus the breakfree torque required. DIYers know what I am talking about.
My 200 Highlander with ~250K seamed to run better, though it could be in my mind.
Caveat Emptor
Good Luck!!
