Descrição do Produto:

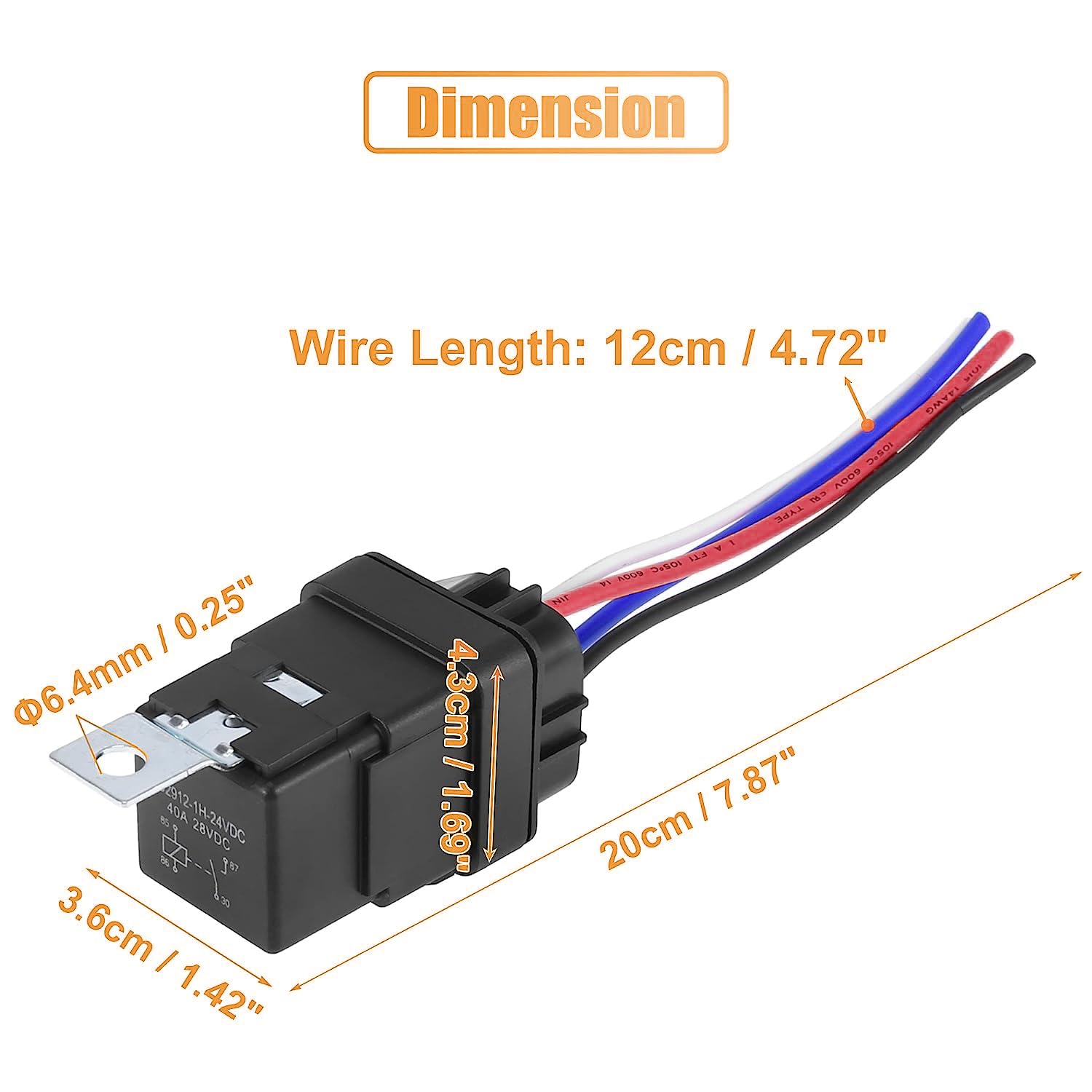

O relé automotivo 3 Pcs JD2912 24V 4 Pin DC 40A é a escolha perfeita para quem busca um componente confiável e eficiente para sistemas elétricos de veículos. Com um design robusto e multifuncional, este relé é ideal para automóveis e motocicletas, proporcionando uma atualização significativa no sistema de potência do seu veículo. Com 4 pinos, o relé opera em uma tensão de 24V e suporta uma corrente de até 40A, tornando-o uma opção versátil para diversas aplicações automotivas, como acionamento de faróis, bombas de combustível e sistemas de som.
A instalação do relé é simples e direta. O pino 85 deve ser conectado ao terra, o pino 30 à fonte de VDC, o pino 86 ao sinal de acionamento e o pino 87 à saída normalmente aberta (N/O). Essa configuração permite que o relé atue de forma eficiente, garantindo que a energia seja distribuída corretamente para os componentes do seu veículo, aumentando a segurança e a performance.
Construído para durar, o relé JD2912 é fabricado com metal e plástico de alta qualidade, tornando-o resistente à ferrugem e à água. Essa durabilidade é essencial para garantir um desempenho prolongado, mesmo em condições adversas. Antes de realizar a compra, é fundamental confirmar o modelo, a aparência e a função do seu relé atual para assegurar a compatibilidade com os acessórios de potência.
- Instruções de Uso:
Para utilizar o relé JD2912, comece desconectando a bateria do veículo para evitar qualquer risco de curto-circuito. Em seguida, identifique os pinos do relé e faça as conexões conforme indicado: conecte o pino 85 ao terra, o pino 30 à fonte de VDC, o pino 86 ao sinal de acionamento e o pino 87 à saída N/O. Após realizar as conexões, verifique se estão firmes e seguras. Por fim, reconecte a bateria e teste o funcionamento do relé acionando o sinal de controle. Se tudo estiver correto, o relé deverá operar sem problemas.
Características do Produto:

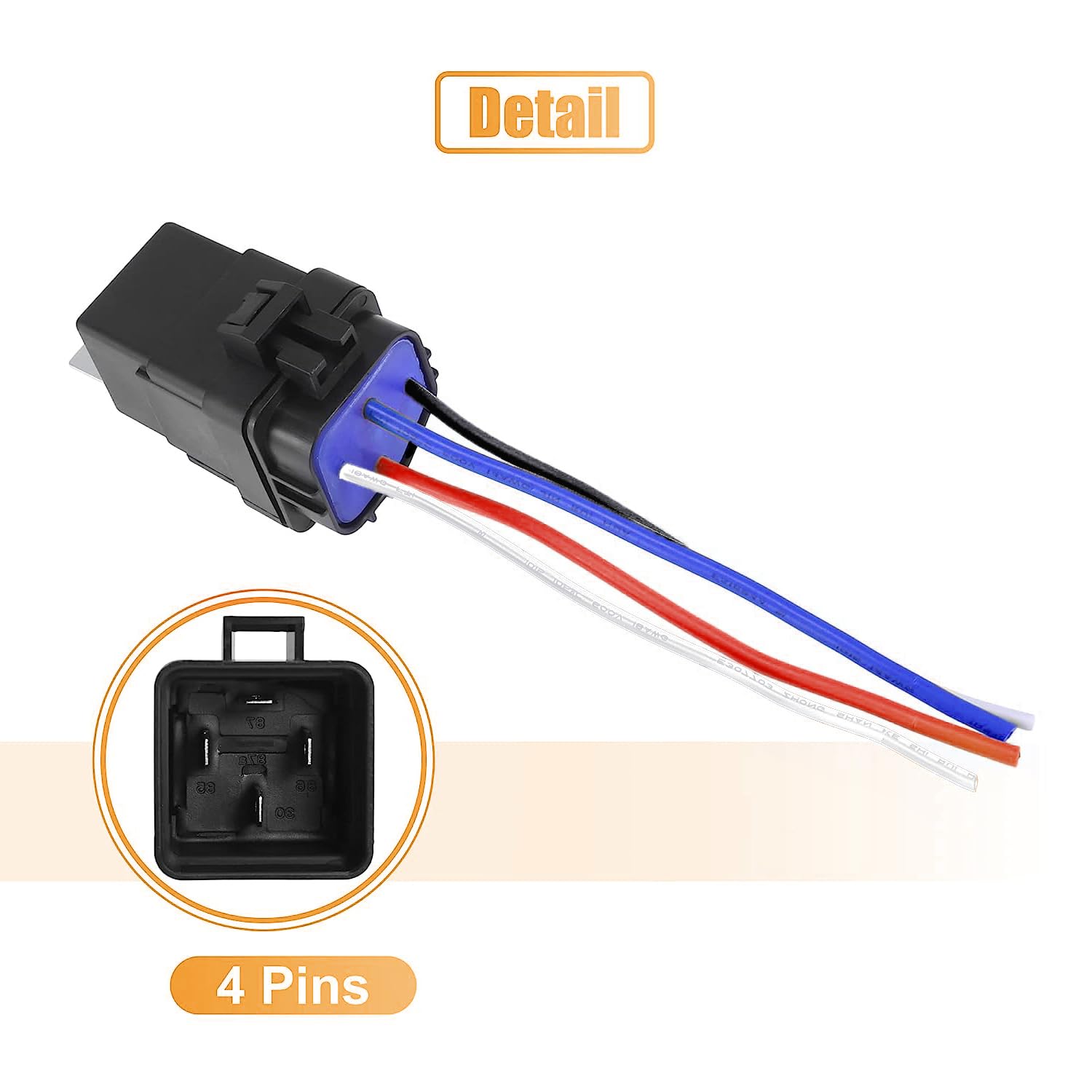

– Número de Pinos: 4

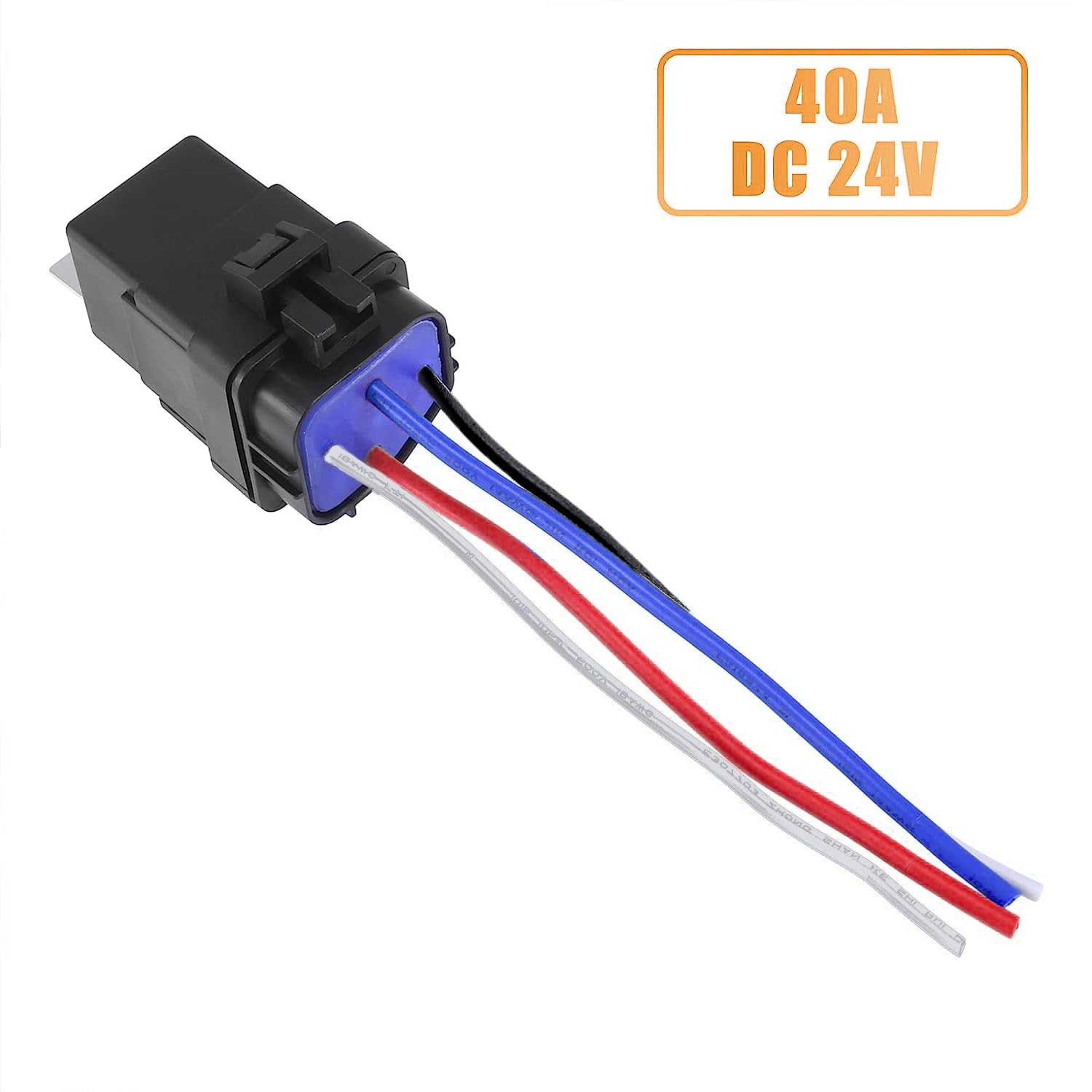

– Tensão: DC 24V
– Corrente: 40A

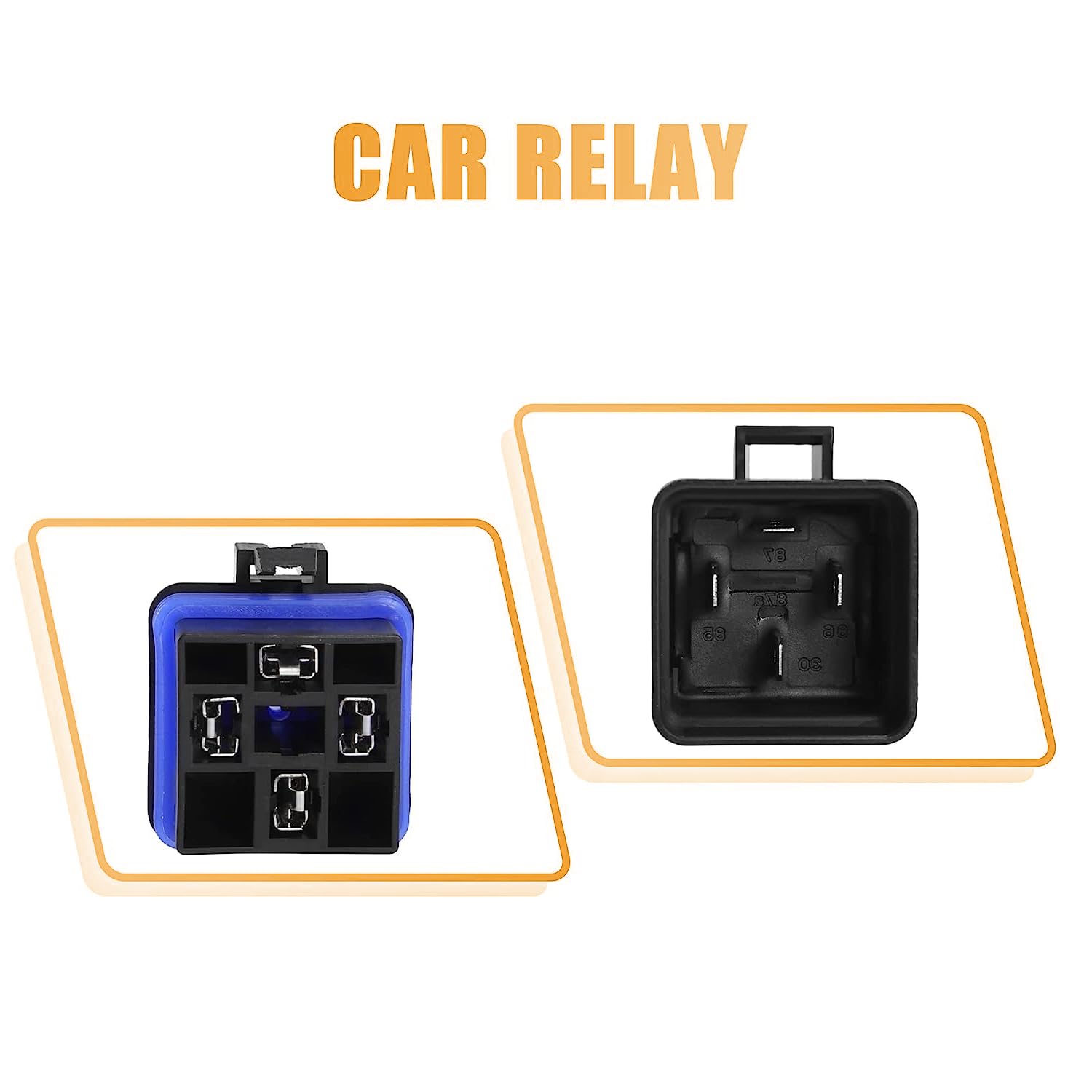

– Conexões:
– Pino 85: Conectado ao terra
– Pino 30: Conectado à fonte de VDC
– Pino 86: Conectado ao sinal de acionamento
– Pino 87: Conectado à saída N/O
– Material: Metal e plástico de alta qualidade
– Resistência: À ferrugem e à água
– Aplicações: Ideal para carros e motocicletas, adequado para diversas atualizações de sistema elétrico.
Perguntas Frequentes (FAQ):
Pergunta: Este relé é compatível com todos os veículos?
Resposta: O relé JD2912 é projetado para ser utilizado em uma ampla gama de veículos, mas é importante verificar a compatibilidade com o modelo e a função do relé atual antes da compra.
Pergunta: Qual é a corrente máxima que este relé pode suportar?
Resposta: O relé JD2912 suporta uma corrente máxima de 40A, tornando-o adequado para diversas aplicações automotivas.
Pergunta: O relé é resistente à água?
Resposta: Sim, o relé JD2912 é fabricado com materiais que oferecem resistência à água, garantindo um desempenho confiável em condições adversas.
Pergunta: Como posso garantir que as conexões estão corretas?
Resposta: Siga as instruções de uso cuidadosamente, conectando os pinos conforme indicado. Se necessário, consulte um profissional para garantir que as conexões estejam corretas.
Pergunta: O que devo fazer se o relé não funcionar após a instalação?
Resposta: Verifique todas as conexões para garantir que estão firmes e corretas. Além disso, confirme se a fonte de VDC está funcionando corretamente. Se o problema persistir, considere consultar um técnico especializado.
RG –
Bigger in SIZE than Expected. Very Solid and Durable build Quality.
RG –
2 of 3 relays did not work upon arrival. Do not buy … no quality control. Update.. 3rd relay died after 3 or 4 uses. These are junk!
Thomas D. –
The 3 Pcs JD2912 24V 4 Pin DC 40A Relay is a heavy-duty automotive relay designed for use in various electrical systems in cars, motors, and other vehicles. This multi-purpose relay provides reliable switching for applications requiring high power, such as motors, lights, and other electrical components in a car or other vehicles. It comes with harnesses to make installation easier. Here’s a detailed breakdown of its features, performance, and overall value:
Pros:
High Power Capacity (40A):
The 40A current rating is a standout feature, as it allows this relay to handle high power loads typically required in automotive applications. This makes it suitable for heavy-duty uses like controlling high-power components such as motors, winches, lights, and other heavy electrical accessories without overheating or risking damage.
Universal Compatibility:
These relays are designed as standard 4-pin DC relays, making them compatible with a wide range of automotive electrical systems. Whether you’re working on a car, truck, or other motorized vehicle, these relays are versatile enough to serve as replacement parts for most vehicles that use 24V systems.
Easy Installation with Harness:
The relay set comes with a harness, making installation much easier and saving time compared to traditional relays that may require additional wiring or connectors. This is especially useful for DIYers or users who need a quick, straightforward installation process.
Durable and Reliable:
Built with heavy-duty materials, the JD2912 relay is made to withstand the demands of automotive applications. Whether used in harsh environments with high temperatures or in outdoor conditions, it’s built to be reliable and long-lasting. The high-quality construction ensures that the relay can function effectively for extended periods, which is essential in automotive and motor applications.
Multi-Purpose Use:
These relays are designed for various applications in vehicles, making them highly versatile. They can be used to control motors, lights, fans, fuel pumps, and more. If you’re modifying your car or truck with new electrical components, these relays are a great solution for managing high-power loads.
Cost-Effective Pack:
The 3-piece set provides good value for those who need multiple relays for their project. Whether you’re working on a single vehicle or multiple electrical systems, this set offers a cost-effective solution for ensuring you have enough relays to complete your work. You also get the benefit of having extra relays on hand in case one fails or needs replacement.
Cons:
Limited to 24V Systems:
These relays are designed for 24V DC systems, meaning they won’t work in vehicles or systems that use 12V electrical setups. While this is fine for certain types of commercial vehicles, trucks, or larger machinery, they may not be compatible with typical passenger cars or other 12V vehicles.
Potential for Overheating:
While the relay can handle up to 40A, it’s essential to ensure that the connected components do not draw more than the relay’s rated current. If the current demand exceeds 40A, the relay could overheat and potentially fail. Users must be cautious when integrating it into high-power systems and verify that the connected components are within the relay’s capabilities.
No Additional Protective Features:
The relay lacks advanced protective features, such as built-in fuses or surge protection. While it’s designed for heavy-duty applications, users who require additional safety measures may need to incorporate separate protection like fuses or circuit breakers to ensure overall system safety.
No Detailed Documentation:
Some users may find the lack of detailed documentation or installation guides a bit of a drawback, especially if they are unfamiliar with relay wiring or automotive electrical systems. While the harness makes installation easier, having a clear user manual or wiring diagram would make it even more accessible for beginners.
Overall:
The 3 Pcs JD2912 24V 4 Pin DC 40A Relay set is an excellent choice for anyone looking to upgrade or replace relays in their automotive or motorized vehicle electrical systems. With a high power rating, universal compatibility, and easy installation with the included harness, it provides reliable performance for controlling high-power components like motors, lights, and fans. Its heavy-duty construction ensures durability and long-term reliability.
While it’s primarily suited for 24V systems and may not be the right fit for 12V vehicles, this relay set is ideal for those working with larger commercial vehicles, trucks, or systems that require higher power. The 3-pack offers good value for those needing multiple relays, making it a cost-effective solution for any project.
However, users should be cautious about the current limits to avoid overloading the relay, and those looking for additional safety features may need to incorporate external protection mechanisms. Overall, the JD2912 24V relay offers a reliable, easy-to-install, and versatile solution for controlling automotive and heavy-duty electrical systems.
