Descrição do Produto: Conectores Elétricos à Prova d’Água MGYOO
Os Conectores Elétricos à Prova d’Água MGYOO são a solução ideal para quem busca segurança e confiabilidade em conexões automotivas. Com um design robusto e materiais de alta qualidade, este kit contém 10 conectores de 1 pino, tanto macho quanto fêmea, projetados para suportar as condições mais adversas. Com uma classificação de impermeabilidade IP68, esses conectores garantem uma conexão elétrica segura e duradoura, mesmo em ambientes úmidos ou expostos a intempéries.
Os conectores são fabricados com nylon PA66 e fios de cobre estanhado de 16 AWG, oferecendo resistência térmica e proteção contra corrosão e oxidação. A faixa de temperatura operacional varia de -20℃ a +105℃, assegurando que os conectores funcionem de maneira eficiente em uma ampla gama de condições climáticas. A instalação é facilitada pelo comprimento reservado de 10 cm dos fios, permitindo um manuseio prático durante o crimpagem. O design do fecho garante que o contato seja inserido de forma precisa e completa na carcaça, evitando que se solte do conector.
Os Conectores MGYOO são amplamente utilizados em carros, caminhões, barcos e motocicletas, proporcionando uma conexão leve, confiável e à prova d’água. Com a durabilidade e a resistência ao desgaste, esses conectores são a escolha perfeita para quem precisa de soluções de fiação automotiva de alta qualidade.
- Instruções de Uso:
Para utilizar os Conectores Elétricos à Prova d’Água MGYOO, comece cortando os fios que deseja conectar, deixando um comprimento adequado para a instalação. Desencape as extremidades dos fios em aproximadamente 1 cm. Insira os fios desencapados nos conectores e utilize uma ferramenta de crimpagem para fixá-los firmemente. Certifique-se de que o contato esteja completamente inserido na carcaça do conector. Após a crimpagem, teste a conexão para garantir que não haja folgas. Os conectores podem ser facilmente removidos quando necessário, permitindo manutenção e substituição sem complicações.
Características do Produto:
– Tipo: Conectores Elétricos à Prova d’Água
– Modelo: MGYOO Weather Pack Connectors Kit

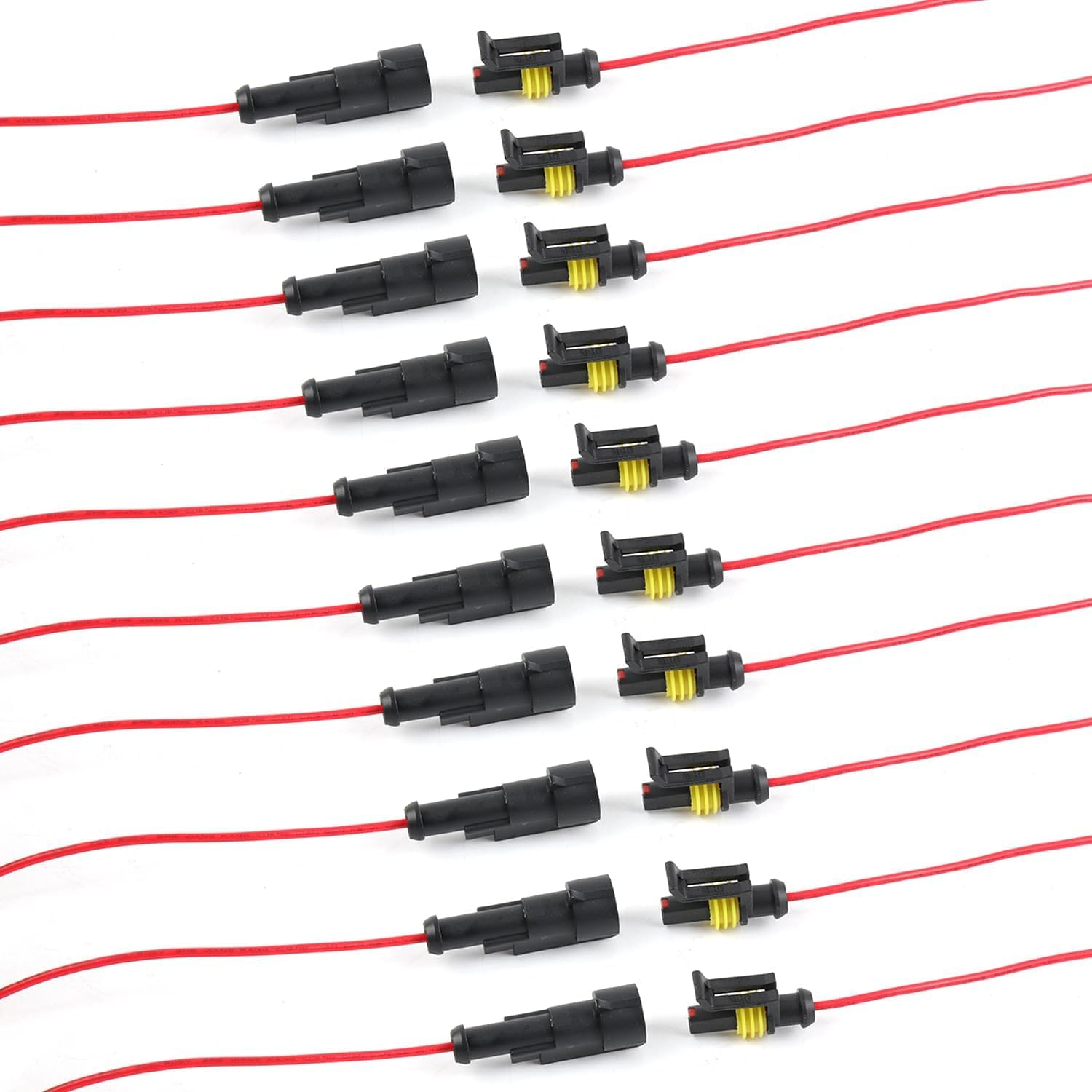

– Quantidade: 10 conectores (5 macho e 5 fêmea)
– Material: Nylon PA66 e cobre estanhado
– Sealing: Borracha de alta qualidade com vedação super selada

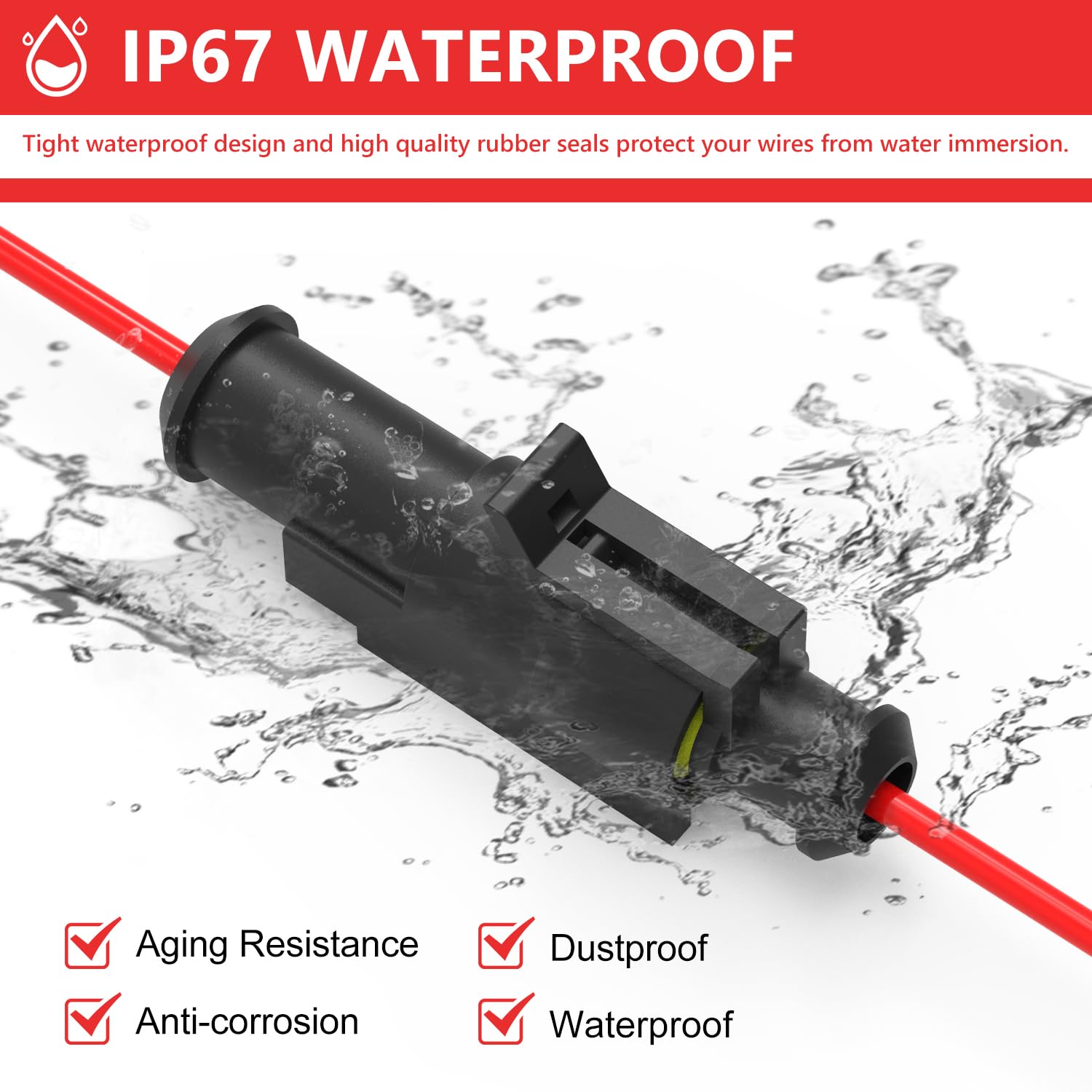

– Classificação IP: IP68 (à prova d’água)
– Temperatura Operacional: -20℃ a +105℃
– Diâmetro do Fio: 16 AWG
– Durabilidade: Resistente a desgaste, poeira e corrosão

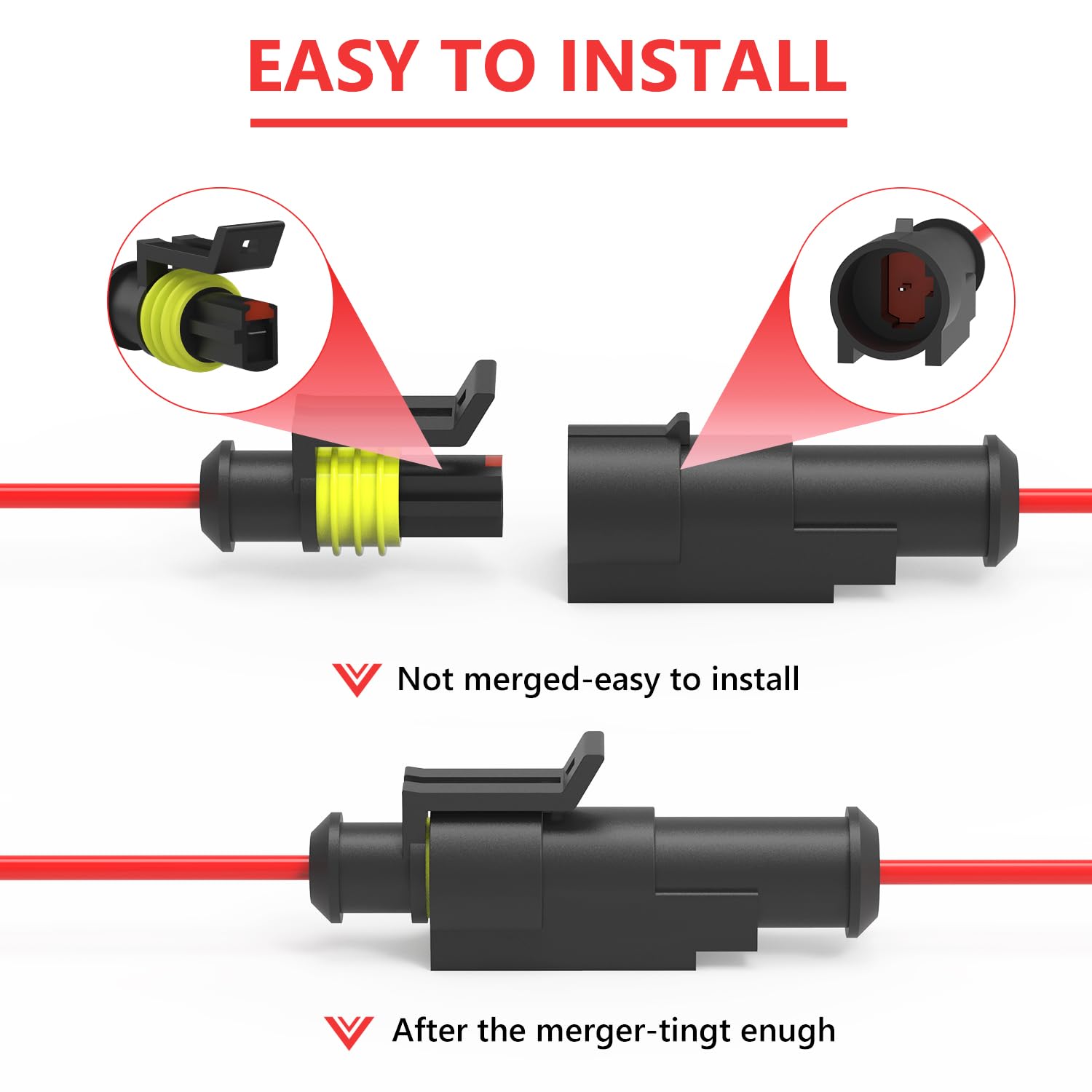

– Facilidade de Instalação: Design de fecho que previne deslizamento
Perguntas Frequentes (FAQ):
Pergunta: Os conectores são realmente à prova d’água?
Resposta: Sim, os Conectores MGYOO possuem classificação IP68, garantindo proteção contra água e poeira, ideal para uso em ambientes externos.
Pergunta: Qual é a faixa de temperatura que esses conectores suportam?
Resposta: Os conectores operam eficientemente em uma faixa de temperatura de -20℃ a +105℃, tornando-os adequados para diversas condições climáticas.
Pergunta: É fácil instalar esses conectores?
Resposta: Sim, a instalação é simples. O comprimento reservado dos fios e o design do fecho facilitam a crimpagem e garantem uma conexão segura.
Pergunta: Posso usar esses conectores em veículos diferentes?
Resposta: Sim, os Conectores MGYOO são versáteis e podem ser utilizados em carros, caminhões, barcos e motocicletas.
Pergunta: Os fios são resistentes à corrosão?
Resposta: Sim, os fios são feitos de cobre estanhado, o que os torna resistentes à corrosão e à oxidação, aumentando sua durabilidade.
ARE Dad –
Even though I received this product at no cost to me, I am reviewing it honestly as though I had paid full price for it.
The connectors arrived in a simple plastic bag with a label stating made in China. The writing on the wires says that they are 0.5 mm² which is equivalent to 20 AWG. The wires are sealed into the base of each side of the connector, which should help with the water resistance compared with other types of connectors where the user has to crimp the terminal end on the wire and then push it into the connector. Also, the ends of the wires are pre-tinned, which helps with making secure solder connections. It took a moderate amount of force to push the connector together and to pull it apart again, indicating that the silicone flange was making a good seal on both sides of the connector.
I tested these connectors in three different ways: the strength of the connector, the electrical resistance and the water resistance. To measure the strength, I hung a 10-pound barbell off one side while the other side was secured in a vise. The connector and wires remained intact.
I used a Fluke digital multimeter to measure the electrical resistance through the connection. A good connector will be less than 0.5 Ohms. This connector was less than 0.1 Ohms for both the red wires and the black wires. So the electrical conductivity is excellent.
I don’t anticipate this connector (when in service) to be submerged in water for more than a few seconds (e.g. driving though a large puddle), so I tested by putting a joined connector in a glass of water for 5 seconds letting it dry in air on a horizontal surface and then opening the connector and looking for water or signs of corrosion. There was no sign of water entry or damage after the water test.
In conclusion, I’m very pleased with the quality of this connector, and I certainly would buy it again if I need more in the future.
granite –
Exactly as advertised. Good product.
Amazon Customer –
I purchased these connectors for some taillights on my trailers . They should work out nicely
ARE Dad –
I have a lot of DIY electrical projects going. I own an older Jeep Wrangler, and it’s not only my toy, it’s my platform for a lot of other toys. I have LED pods, led strips, whip lights, all sorts of things, installed in my Jeep. I love using plugs for things; being able to unplug an LED pod to reposition it or switch it out is much nicer than having to cut the wire each time. I go through plugs pretty quickly, so am always looking for more, so when I saw these I decided to try them.
These arrived in a nice bag and contained just the plugs.
These are good quality connectors! I haven’t played with this style much, I typically go for the deustch style plugs, but I’ve heard good things and I wanted to give them a shot. I have a lithium bank that has several accessories that I wanted to be able to be connected and disconnected so that the bank is removable. I toyed with having each thing on its own plug and harness, but why not have everything on one big plug?
Overall I’m pleased with these plugs. I don’t have many that have quite so many contacts, and its nice to use one big plug instead of several smaller ones.
RG –
These work as intended. Secure connection. Made from high quality materials. Reasonable pricing.
Remington –
Exactly the waterproof ease of use connectors I was looking for. They’re working really well and being able to quit disconnect to put wires in certain places and my boat was fabulous.
Eric H. –
Typical China garbage !
IT’s NOT 16 GAUGE WIRE , FALSE ADVERTISING!!!
It is only TINY 20 GAUGE WIRE !
GearHeadPeter –
Bought these to rewire my car door wiring harness so I could remove the doors. What is great about this product is the overall length of the two connectors connected is only 2 1/8 inches.
It’s excellent for tight spaces and is a quality made part and is a great value for the money.
TacoLover –
Inspection Review — These 2-pin connectors look good quality.
I plan to use on upcoming 4×4 customizations that require waterproof wired connections.
I will update review if I run into any quality or longevity issues.
Jungle Ling –
the best connecters I ever had
